Infantry

The infantry is the largest and most versatile branch of the military, intended for a wide range of missions.

Infantry units are a constituent element of combat forces, which, in addition to the infantry, consist of the armoured and special operations units. The basic purpose of combat forces is to defeat the enemy in direct combat with firepower and manoeuvre.

Infantry units are equipped with infantry weapons, trained for infantry combat and move on foot. In the modern world, genuine infantry units are rare, as they are predominantly equipped with vehicles to enable faster transportation, which consequently turns them into motorized units. Infantry units include mountain units specializing in mountain warfare.

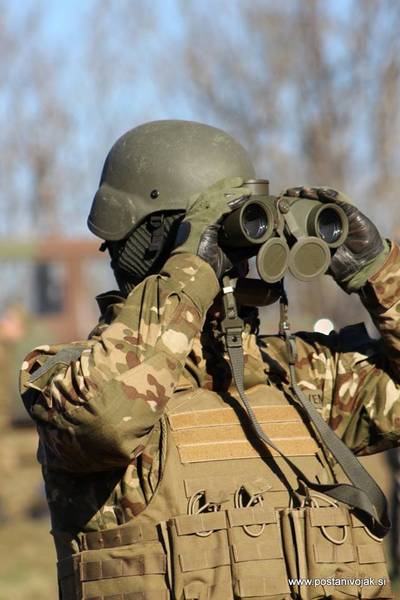

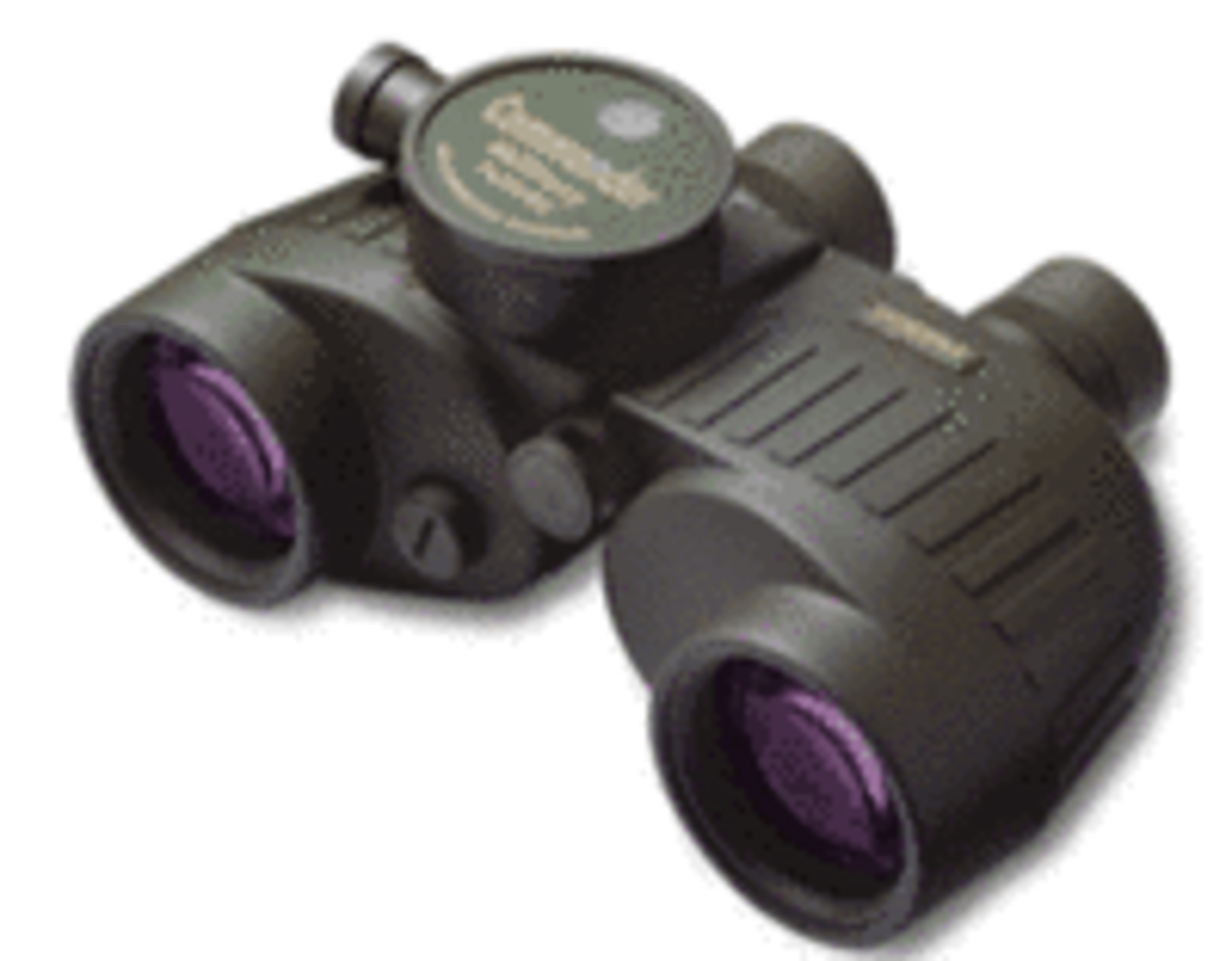

Steiner Commander Military C Binoculars

These binoculars are intended for unit commanders and soldiers specializing in battlefield observation.



The binoculars have 7x magnification and are equipped with a compass for determining direction.



Steiner-OptikGmbH, Germany



Basic information
Magnification:7x
Field of view:11 m / 100 m
Resolution:n/a
Dioptre:+/- 5
Lense:50 mm
Dimensions:140 x 207 x 95 mm
Weight:1125 g

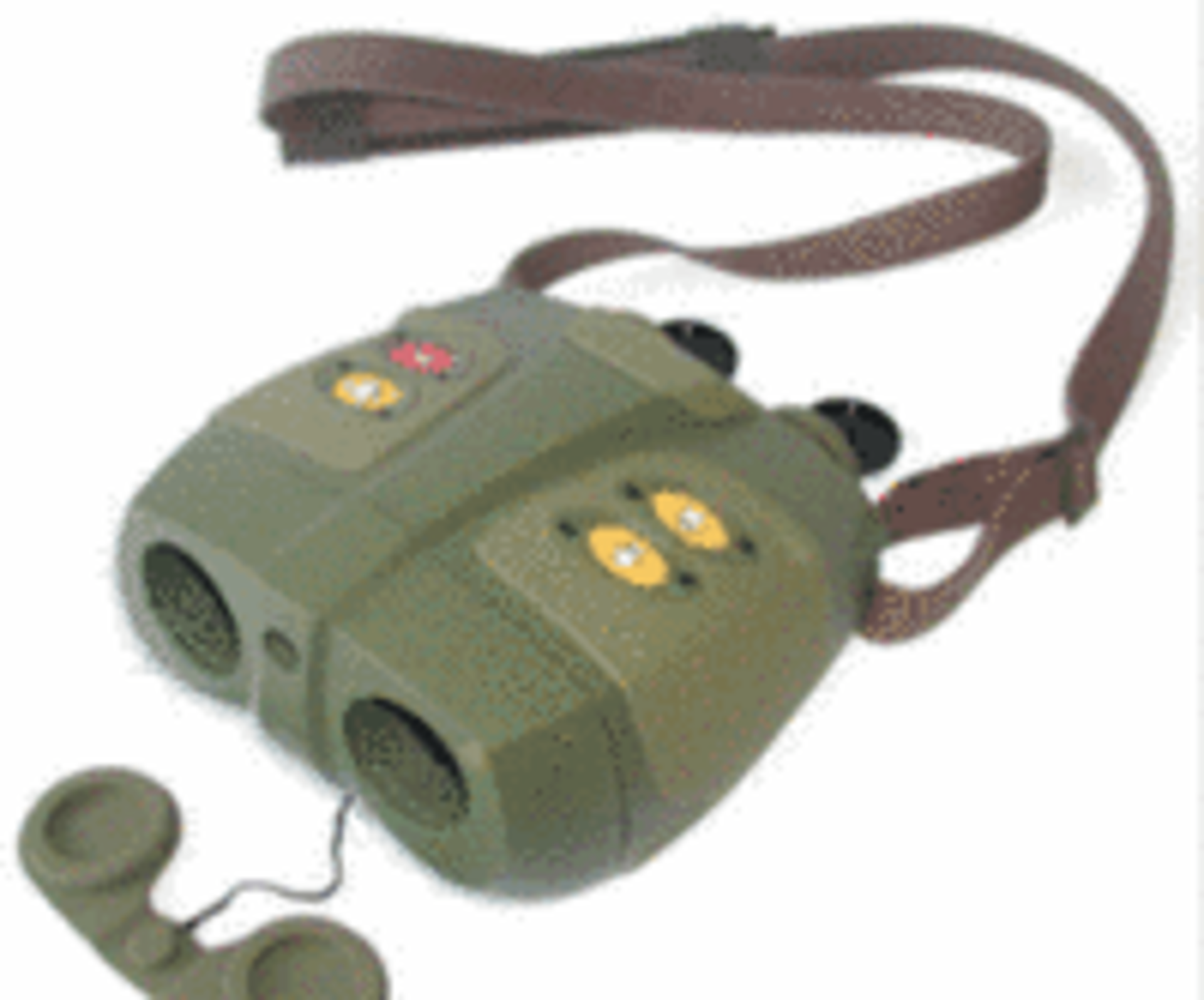

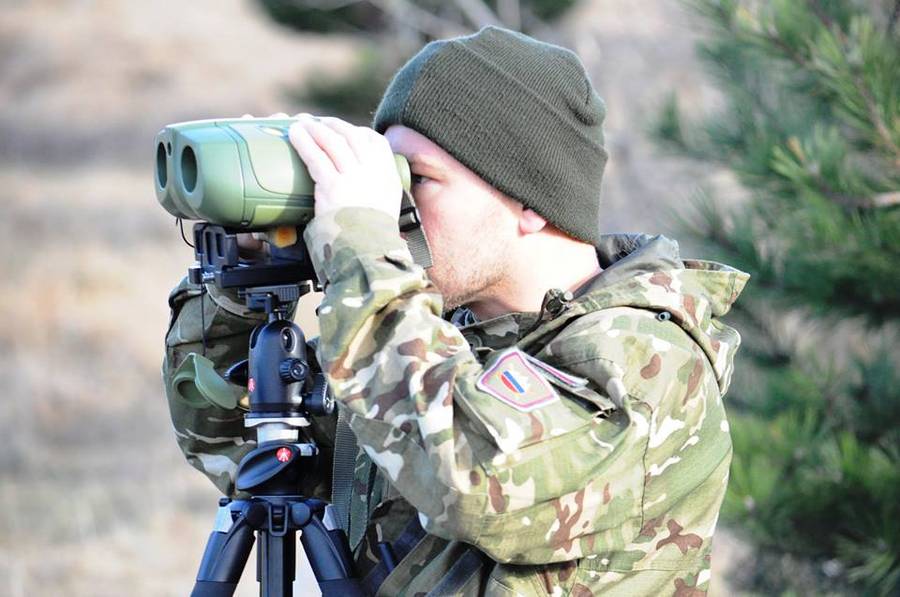

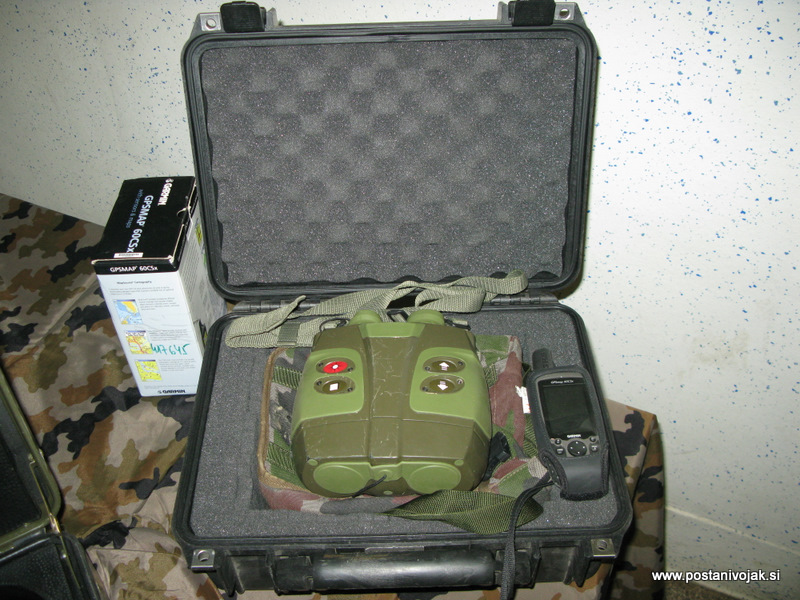

Fotona Metrix C Laser Rangefinder

The Metrix C is an optoelectronic device consisting of binoculars, a laser rangefinder and a digital compass. It is used by company commanders and soldiers specializing in battlefield observation, and to determine distances and courses.



The device measures distance based on the principle of the reflection of a laser beam. It uses a Class 1 laser which is not harmful to the human eye. It requires 6 AA batteries.



Fotona, Slovenia



Basic information
Magnification:7x
Dioptre:-5 / +5
Distance measurement:up to 10,000 m
Measurement accuracy:+/- 3 m
Compass:360°
Compass accuracy:+/- 0,5°
Dimensions:190 x 210 x 101 mm
Weight:1930 g

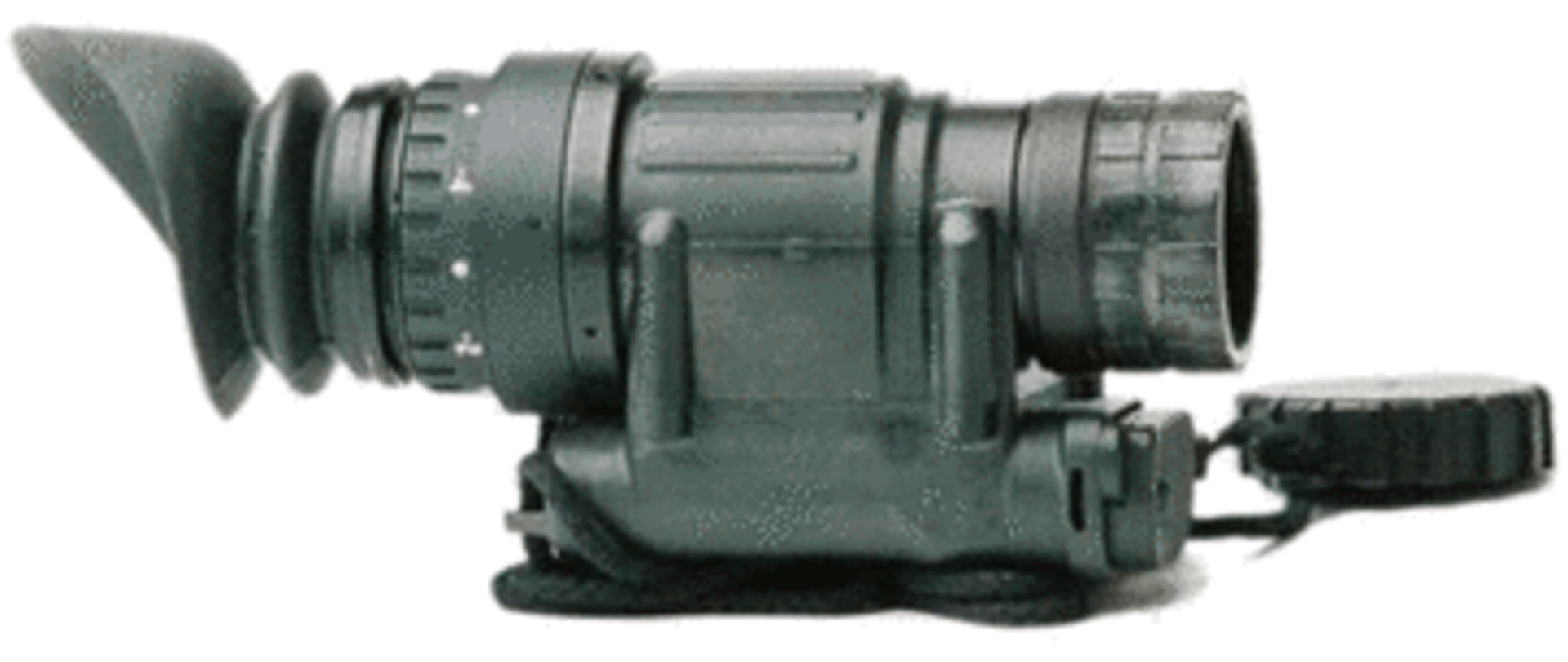

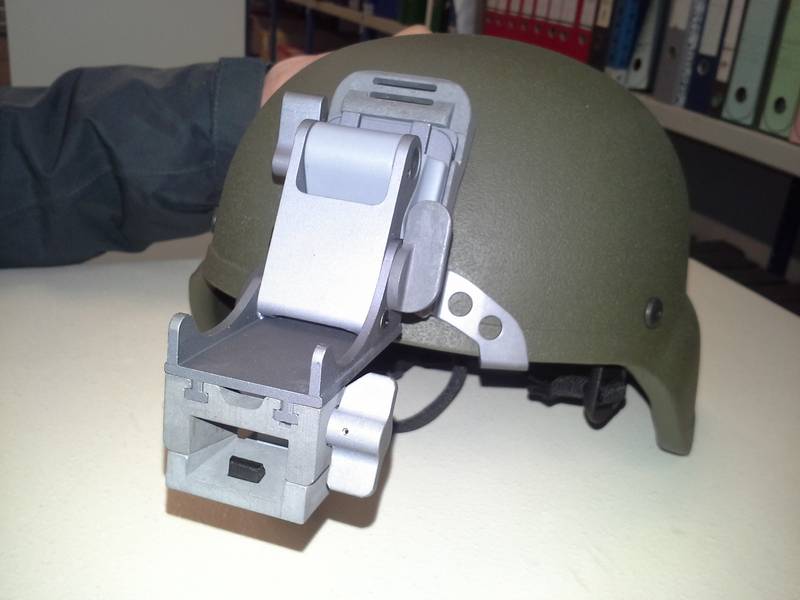

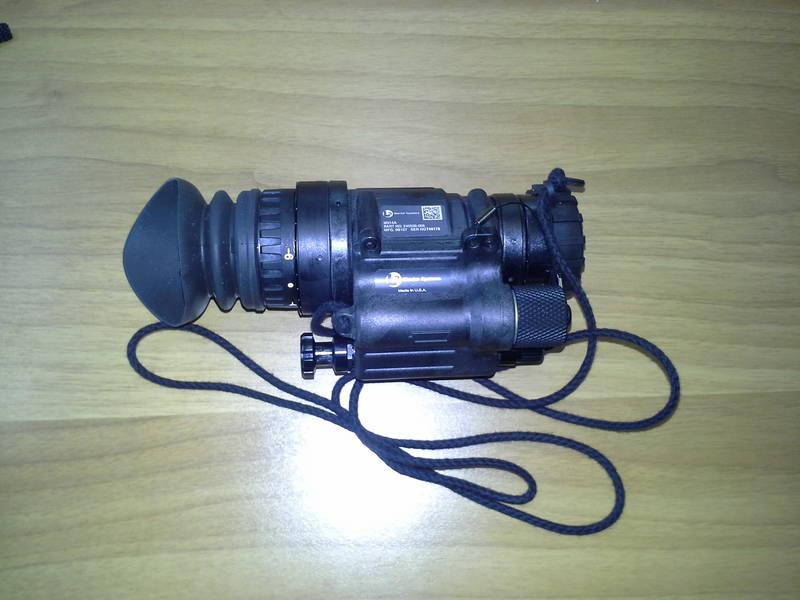

Night Vision Device – L3 AN/PVS-14

The AN/PVS-14 Night Vision Device is designed for observation at night and in poor visibility. It is used by officers, non-commissioned officers and soldiers during night combat operations. It has replaced an older system, the Loris MK-5.



The night vision device operates on the principle of light amplification. The image produced by the night vision device is monochrome green. It can be mounted on a helmet or a weapon. In total darkness, the device uses infrared (IR) light for observation at short distances.



L3 technologies, USA



Basic information
Magnification:1x
Field of view:40°
Resolution:64 lpmm
Dioptre:-6 / +2
Lens:
Dimensions:117 x 66 x 61 mm
Weight:346 g

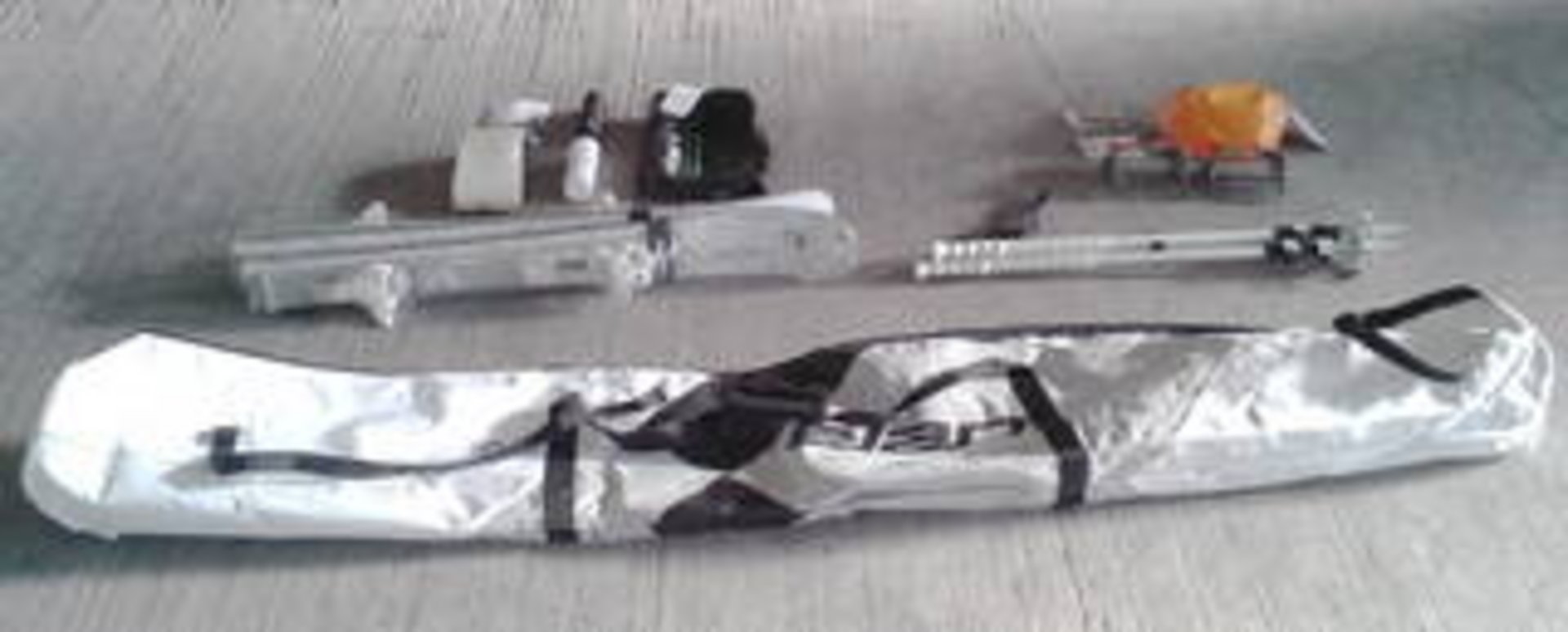

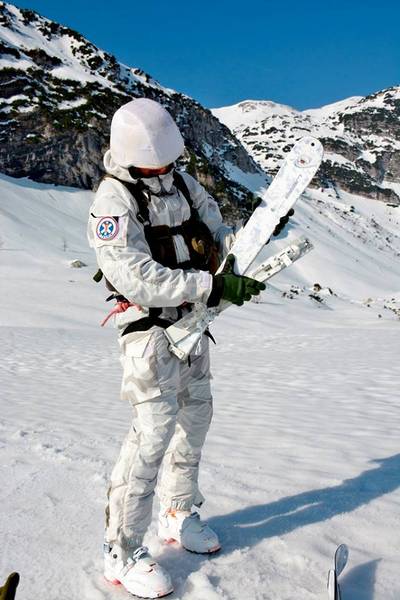

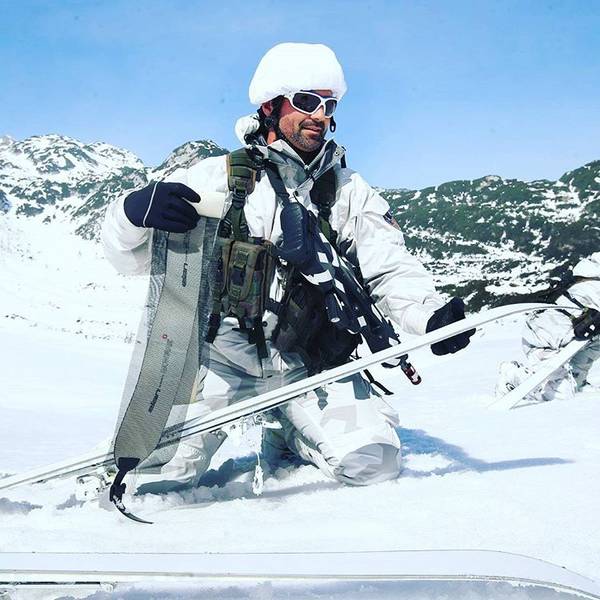

ELAN TACTIX SV Folding Ski

The folding ski enables greater mobility on snow slopes. It is intended for the Slovenian Armed Forces mountain units and replaces the older, non-folding skis.



The folding skis kit is composed of the folding skis themselves, touring skis, folding telescopic poles, crampons and ski skins. When folded, the entire kit fits alongside the soldier’s backpack and does not exceed the length of the backpack.



Basic information
Kit weight:6 kg
Length:170 cm
Length of the folded ski:100 cm
Kit:Skis, ski bindings, poles, crampons and ski skins

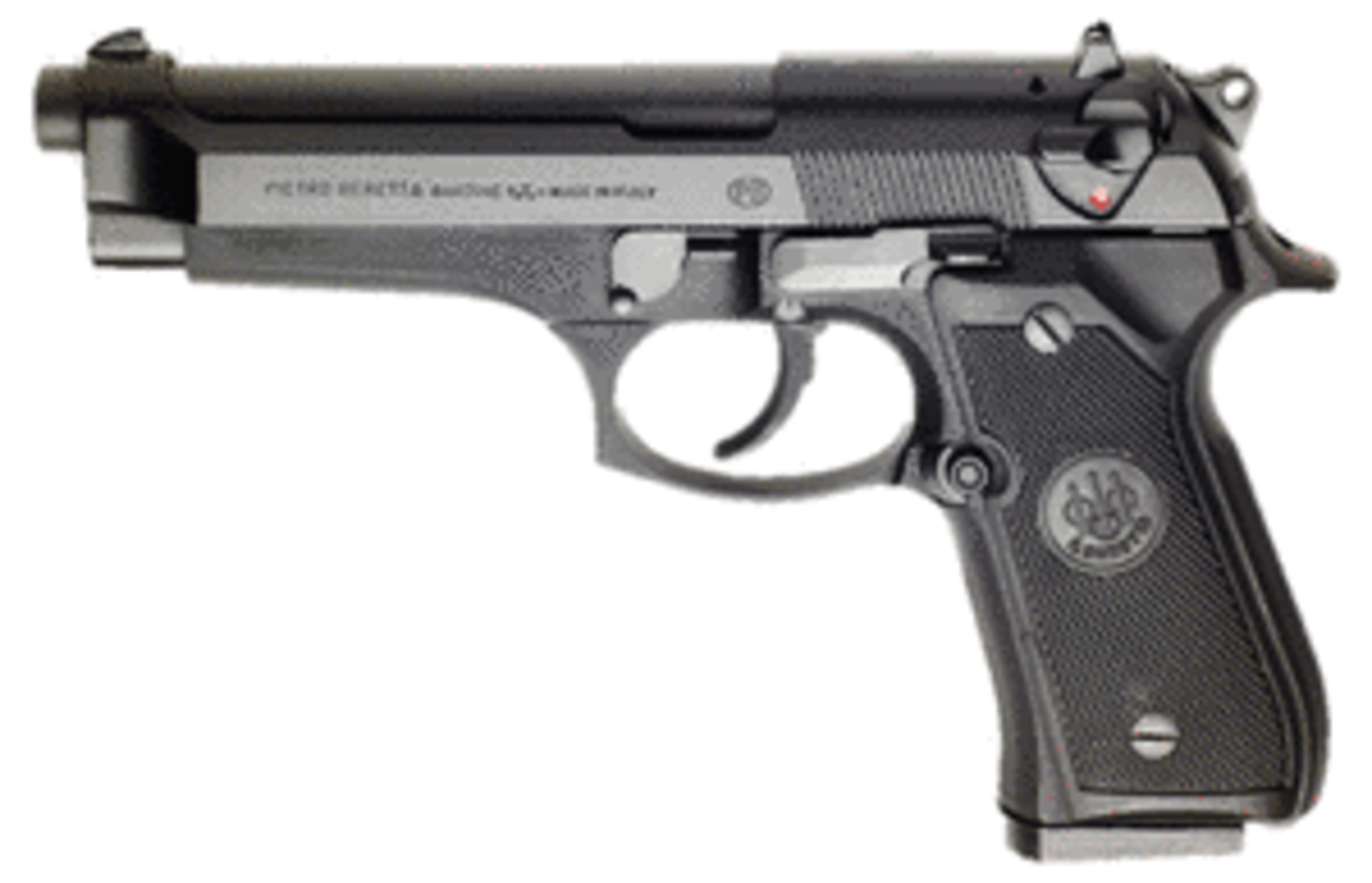

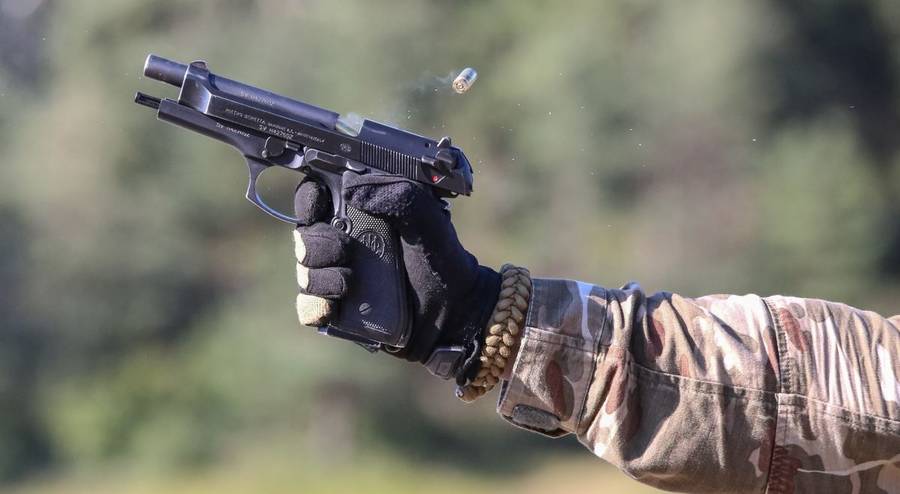

Beretta M92 FS Pistol

The Beretta M92FS pistol is a personal defense weapon. It is designed to neutralize live targets with accurate and direct fire at distances of up to 50 meters.



The pistol is semi-automatic operating on the principle of a short-recoil action. It uses a double action mechanism and is equipped with a reliable safety mechanism.

Beretta S.p.A., Italy



Basic information
Calibre:9 x 19 mm
Ammunition:9 mm PARA
Effective range (best results):25 m
Magazine:15 rounds
Length:217 mm
Barrel length:125 mm
Weight:975g (unloaded)

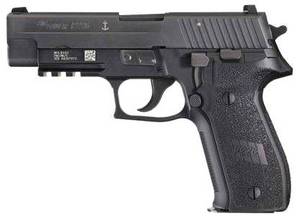

SIG Sauer P226 Pistol

The SIG Sauer P226 pistol is a personal weapon of officers, non-commissioned officers and soldiers in special units of the Slovenian Armed Forces (the Special Operations Unit, the Specialized Unit for Special Tactics, etc.). It is designed for the destruction of live targets with a precise and direct fire within a range of 50m.



The pistol is semi-automatic operating on the principle of a short-recoil action. It uses a double action mechanism and is equipped with a reliable safety mechanism.



SIG Sauer GMBH, Germany



Basic information
Calibre:9 x 19 mm
Ammunition:9 mm PARA
Effective range (best results):25 mm
Magazine:15 rounds
Length:196 mm
Barrel length:112 mm
Weight:790 g (unloaded)

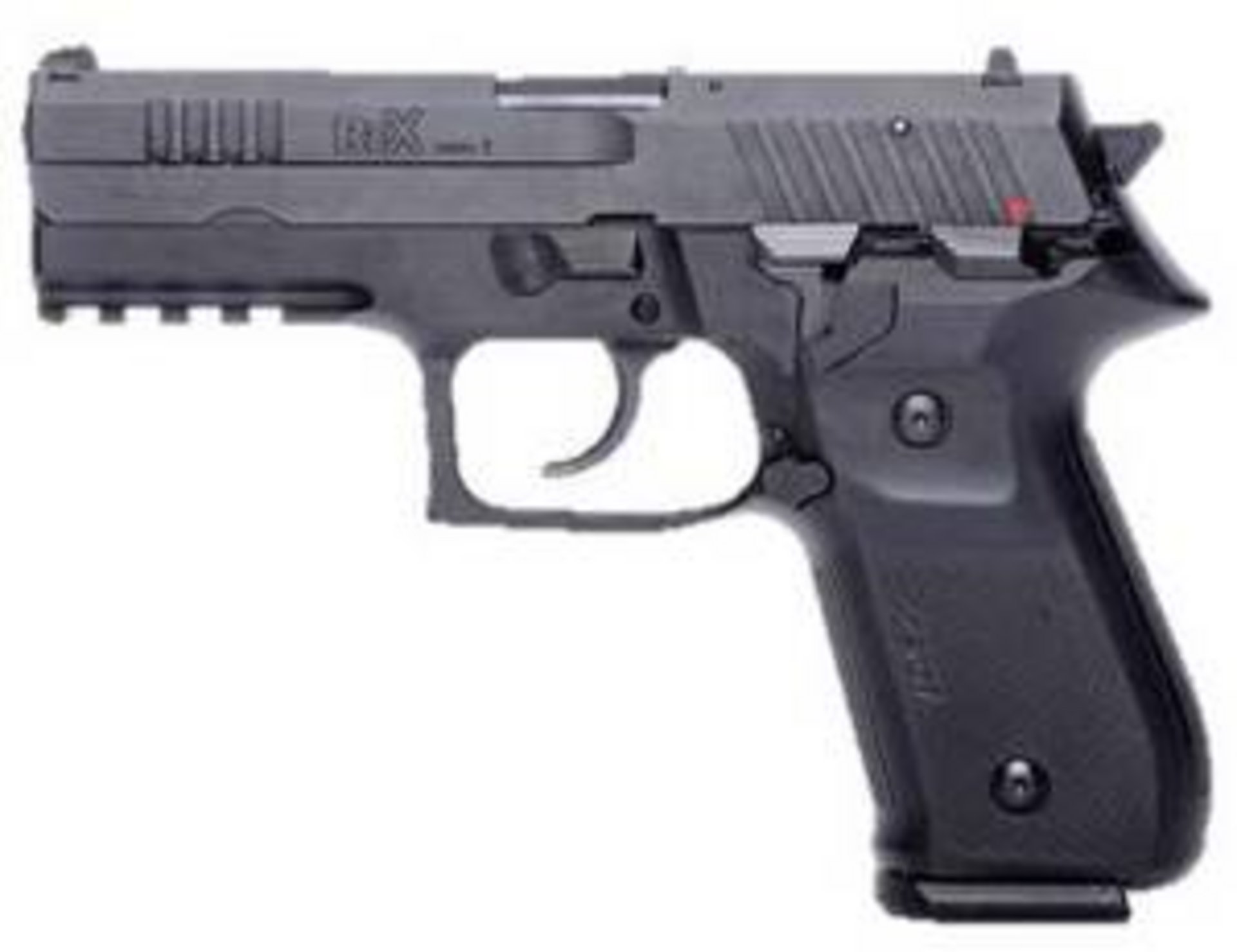

AREX REX ZERO 1S Pistol

Arex Zero 1S is a personal weapon of officers, non-commissioned officers and soldiers in specialized units of the Slovenian Armed Forces. It is designed for the destruction of live targets with a precise and direct fire within a range of 50m.



The pistol is semi-automatic, operating on the principle of a short-recoil action. It uses a double action mechanism and is equipped with a reliable safety mechanism.



Arex, Slovenia



Basic information
Calibre:9 x 19 mm
Ammunition:9 mm PARA
Effective range:25 m
Magazine:18 rounds
Length:190 mm
Barrel length:108 mm
Weight:810 g (unloaded)

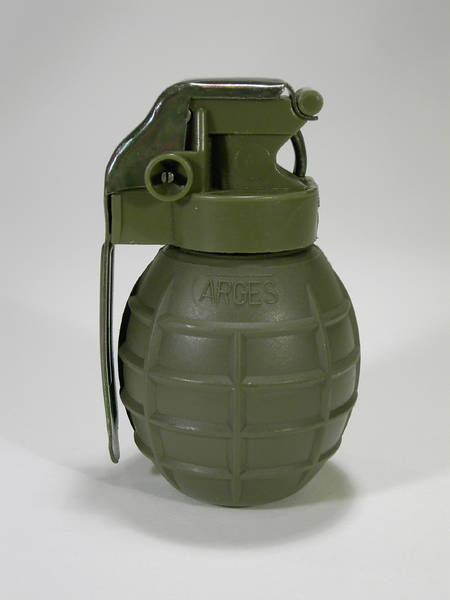

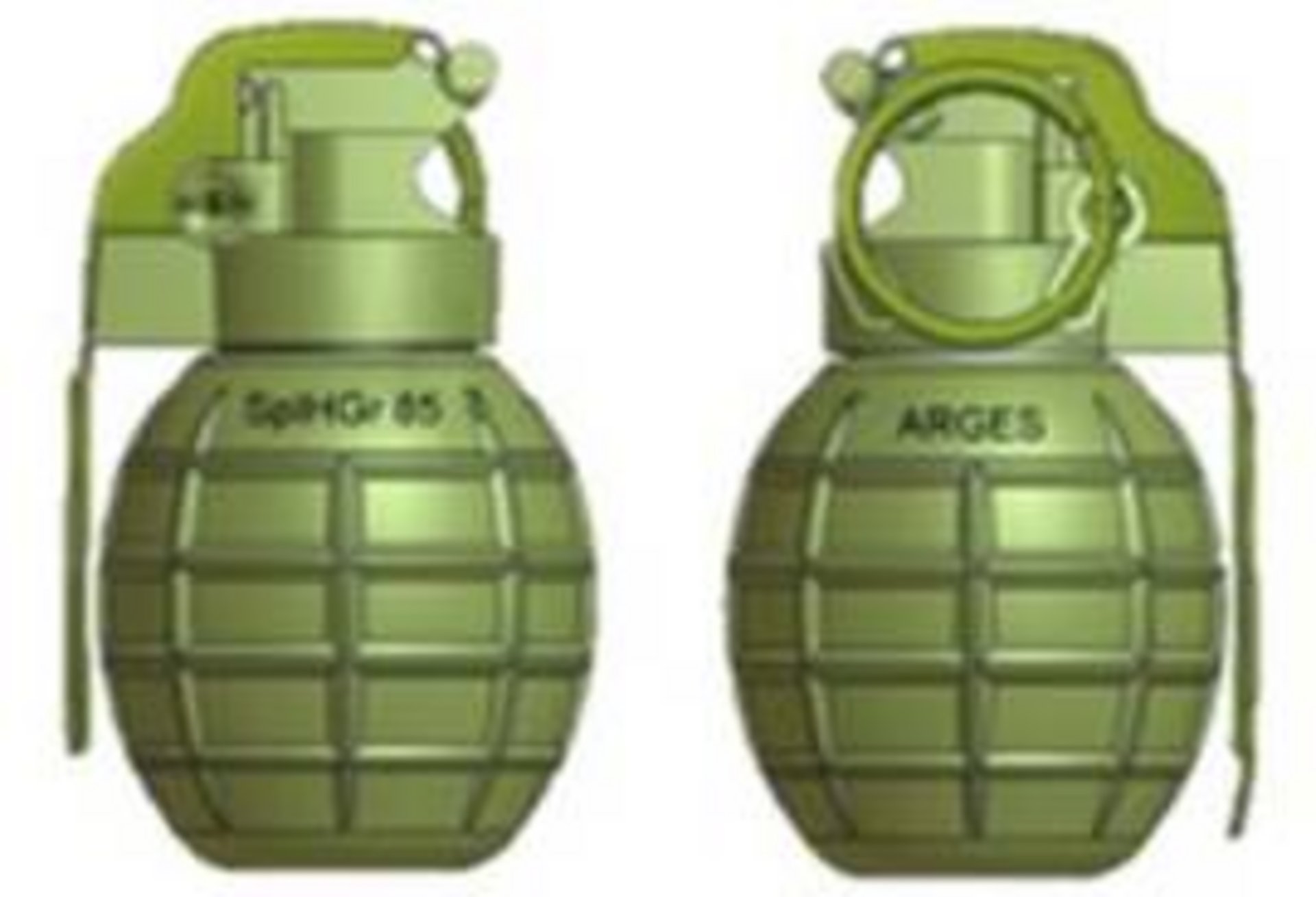

ARGES SPL HGr85 Hand Grenade

This defensive hand grenade is a high explosive (HE) fragmentation device with a large number of steel balls used for disabling and killing the enemy. It is mainly used in open battlefield, but can also be used for the cleaning of tunnels, bunkers, forests or in urban warfare.



The fragments can kill an unprotected person within a range of 12 m and immobilize or wound a person within a range of 30 m from the point of detonation. The detonation time delay is 3 to 4 seconds from the moment the grenade is thrown.



Arges GmbH, Austria



Basic information
Operating principle:Explosive body
Time delay:4s (+ 1/0.5s)
Hand grenade height:96 mm
Hand grenade diameter:54 mm
Weight of explosive charge:50 g
Weight:180 g
Metal fragments:3500

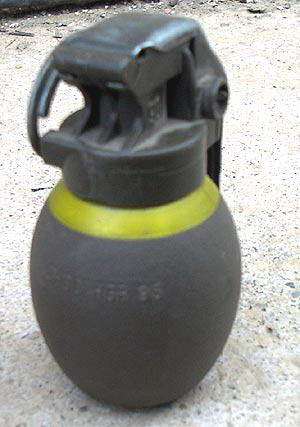

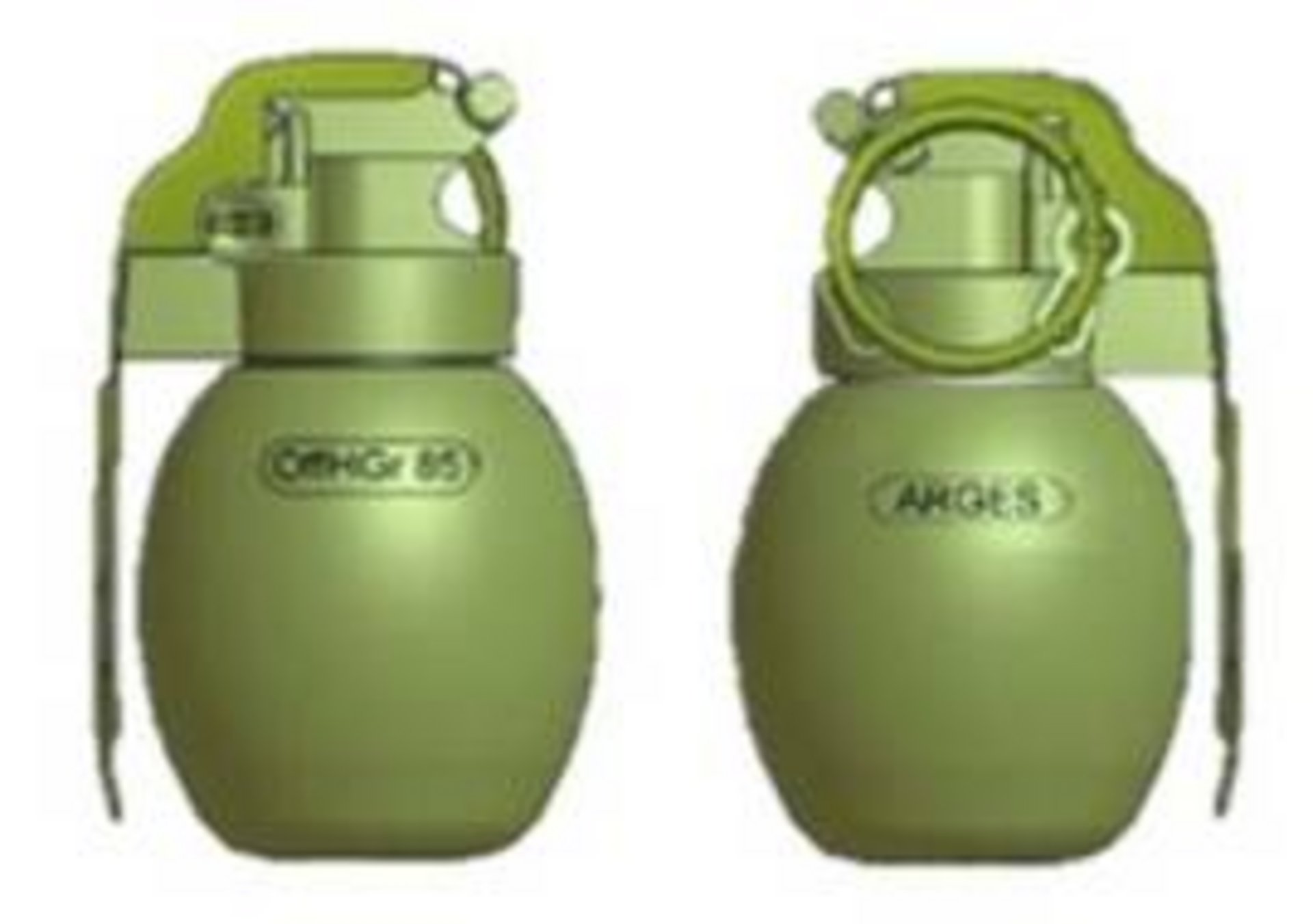

ARGES OFF HGr 85 Hand Grenade

This offensive hand grenade is a high explosive (HE) fragmentation device with a small number of plastic balls used for disabling and shocking the enemy.



It is used in all types of close combat, but can also be used for the cleaning of tunnels, bunkers, forests or in urban warfare.  Due to the small number of plastic fragments, the user of this hand grenade can seek shelter behind prefabricated walls in a building.



Arges GmbH, Austria



Basic information
Operating principle:Explosive body
Time delay:4 s (+ 1/0,5 s)
Hand grenade height:96 mm
Hand grenade diameter:54 mm
Weight of explosive charge:50 g
Weight:180 g
Metal fragments:3500

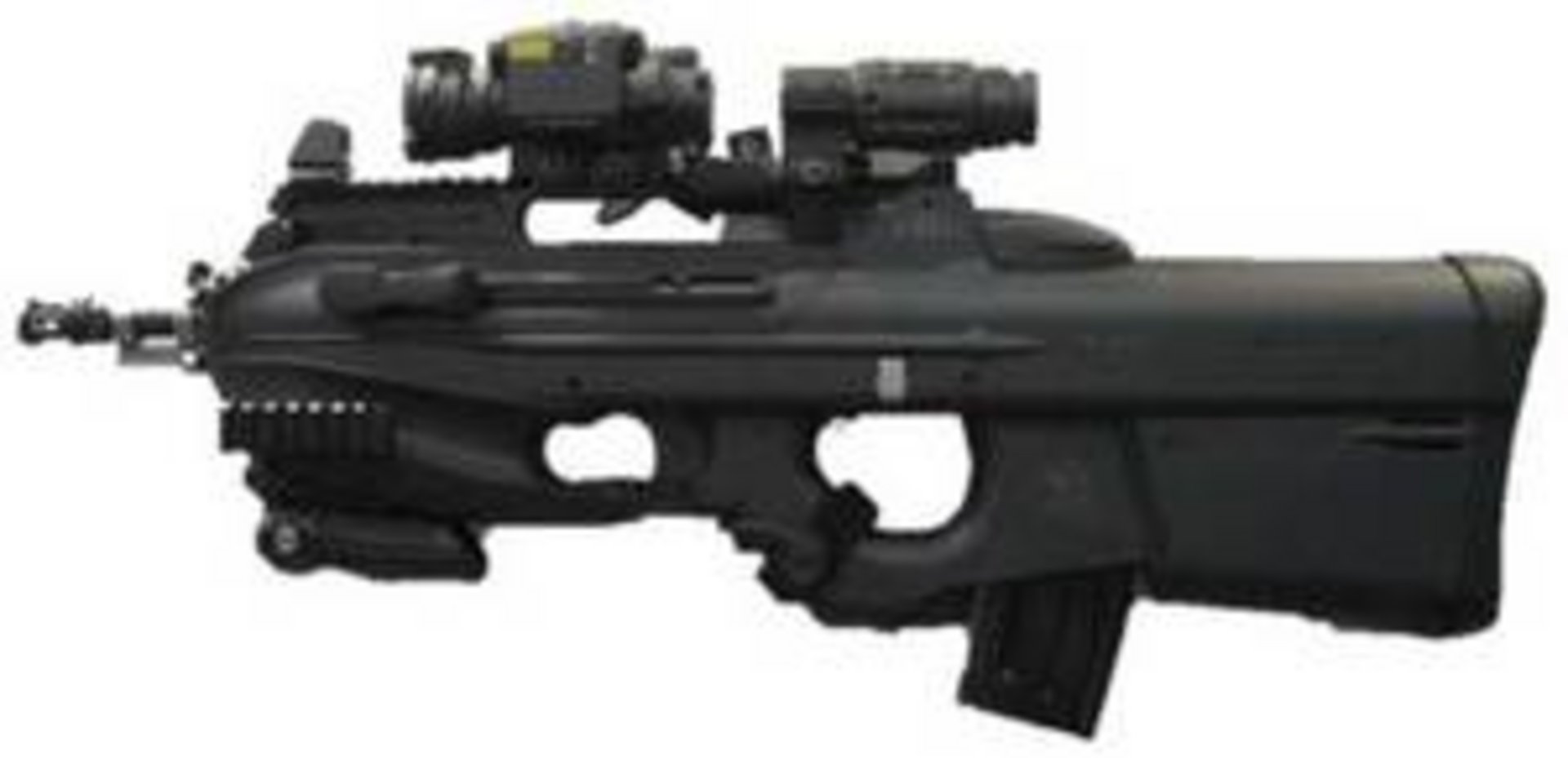

FN HERSTAL 2000 S Automatic Rifle

The F 2000 S is a basic weapon of officers, non-commissioned officers and soldiers of the Slovenian Armed Forces.



It is a weapon with bullpup configuration (the rifle’s action is located behind the trigger) with gas-operated reloading. The rifle is locked by rotating the breech block in the forward position. The weapon can be used by both right and left handed people without any additional adjustments. In addition to the classic mechanical sight, the Slovenian Armed Forces’ rifles are equipped with an optical weapon sight by Trijicon with a 3.5x magnification or an Aimpoint reflex optics with a 3x magnification.



FN Herstal SA, Belgium



Basic information
Calibre:5.56 x 45 mm
Ammunition:5.56 mm SS109 or L110
Effective range:500 m
Rate of fire:850 RPM
Initial speed:900 m/s
Magazine:30 rounds
Length:688 mm
Barrel length:400 mm
Weight:4193 g (unloaded)

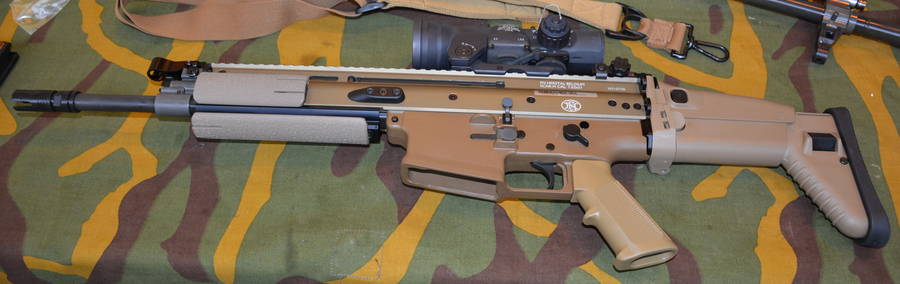

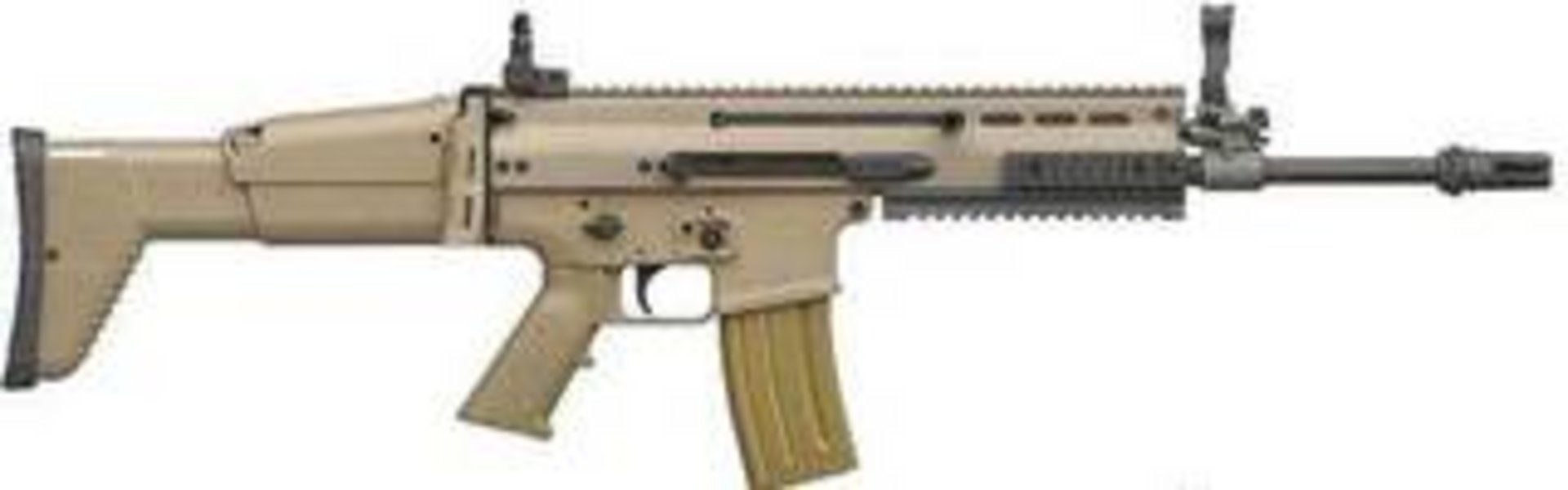

FP FN SCAR-H Automatic Rifle

The SCAR H rifle is intended for specialized units (the Special Operations Unit). Unlike the F 2000 S and in SCAR L, this rifle uses more powerful 7.62x51 mm ammunition.



The weapon has gas-operated reloading. The rifle is locked by rotating the breech block in the forward position. It is equipped with a classic mechanical sight and an optical sight by Elcan with 1.5x and 6x magnification.



FN Herstal SA, Belgium

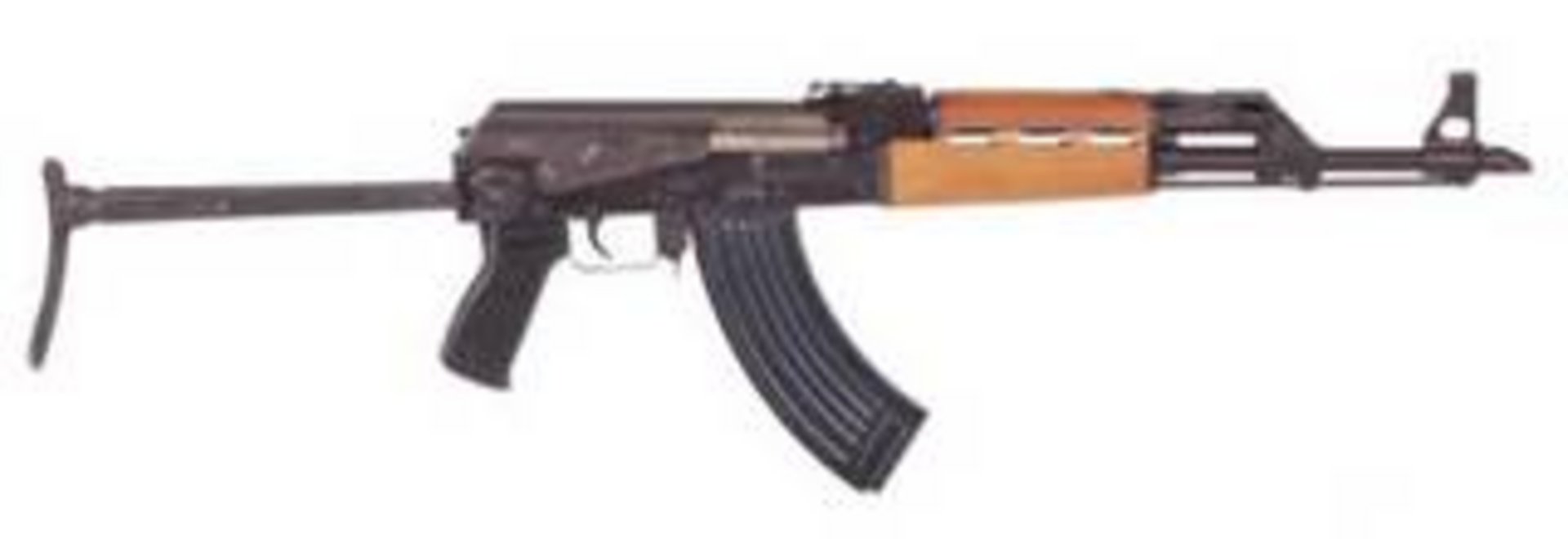

ZASTAVA M70 AB2 Assault Rifle

The M70AB2 rifle is the standard weapon used in the reserve units of the Slovenian Armed Forces. It is intended for engaging enemy soldiers and unarmoured vehicles.



The weapon has gas-operated reloading. The rifle is locked by rotating the breech block in the forward position. It can be equipped with a grenade launcher enabling firing with a small arms rifle grenade (SARG).  The rifle has a classical mechanical sight.



Zastava, Serbia (Yugoslavia)



Basic information
Calibre:7.62 x 39 mm
Ammunition:7.62 mm
Effective range:400 m
Rate of fire:600 rounds/minute
Initial speed:720 m/s
Magazine:30 rounds
Length:640 mm
Barrel length:415 mm
Weight:3700 g (unloaded)

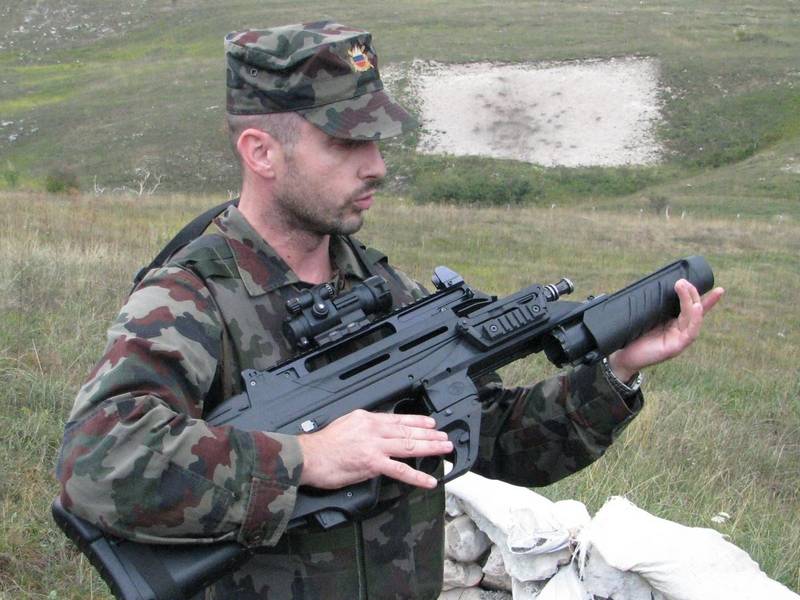

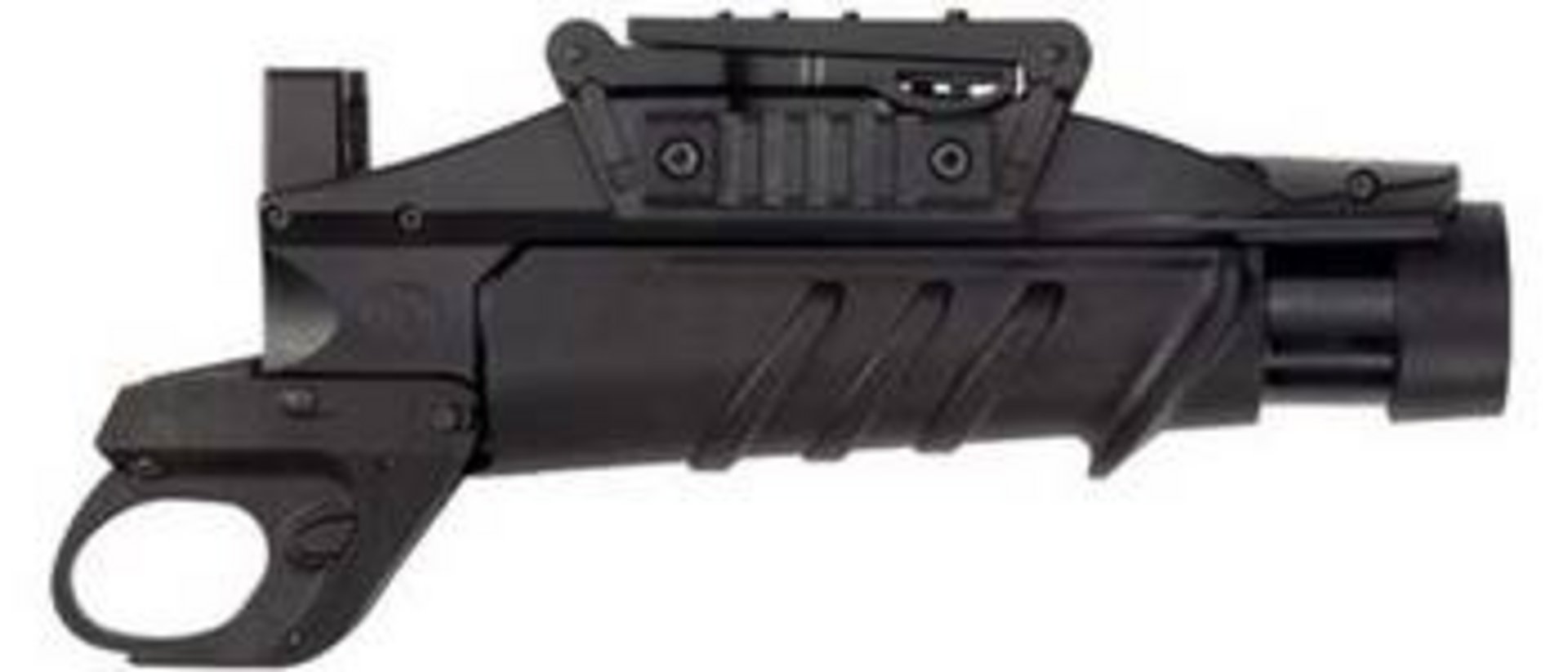

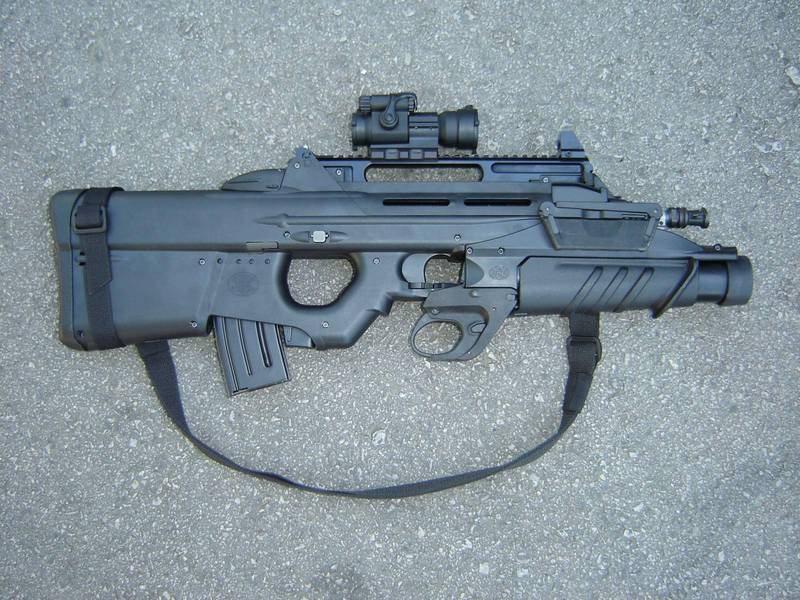

FP HERSTAL LG1 Under-Barrel Grenade Launcher

The grenade launcher is intended for destroying enemy personnel, light armoured vehicles, and firing positions, as well as for battlefield illumination, smoke screening, and target marking.

It has been specifically developed to be used with the F 2000 S automatic rifle and is one of the additional modules that can be mounted on a rifle without any additional tools.



The grenade launcher can fire single shots and is opened and locked with a pump action, blocked by swivelling the barrel. It has a double-action trigger.



FN Herstal SA, Belgium



Basic information
Calibre:40x 46 mm
Ammunition:40 mm
Effective range:350 m
Rate of fire:n/a
Muzzle velocity:76 m/s
Magazine:n/a
Length:720 mm (rifle included)
Barrel length:230 mm
Weight:1200 g (unloaded)

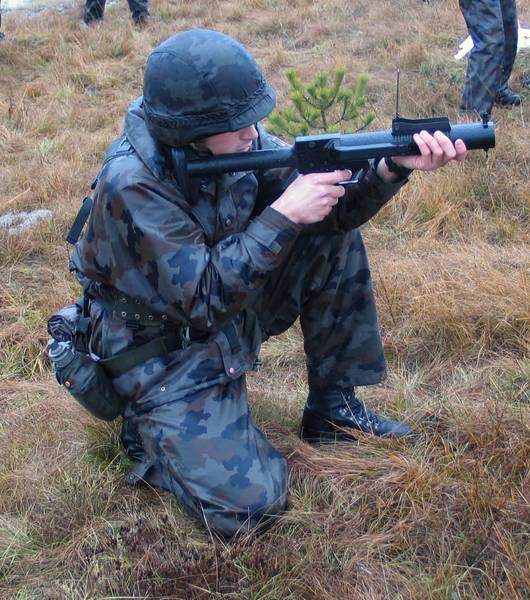

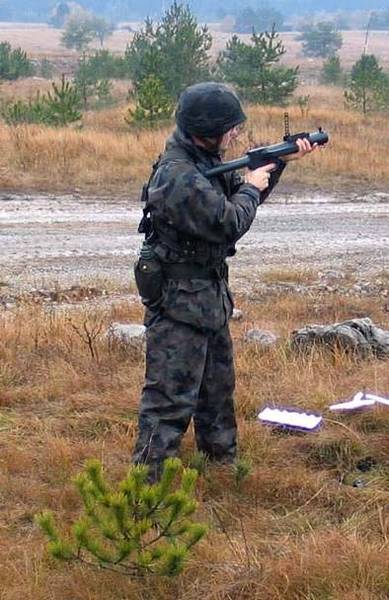

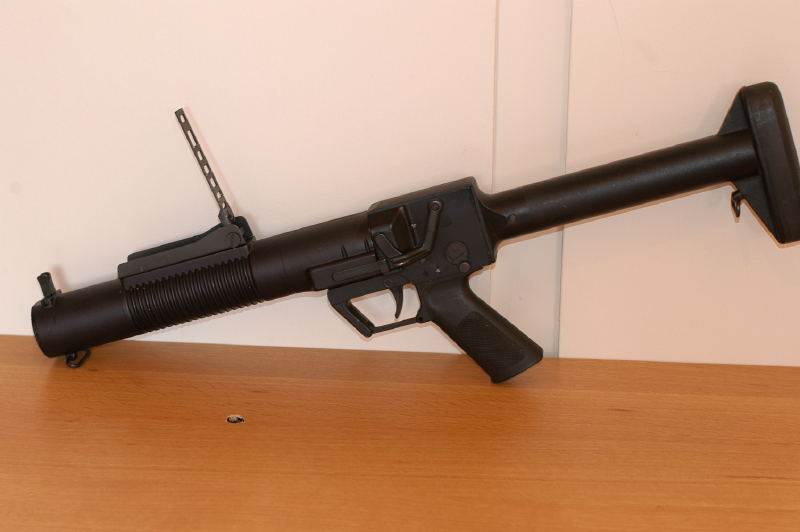

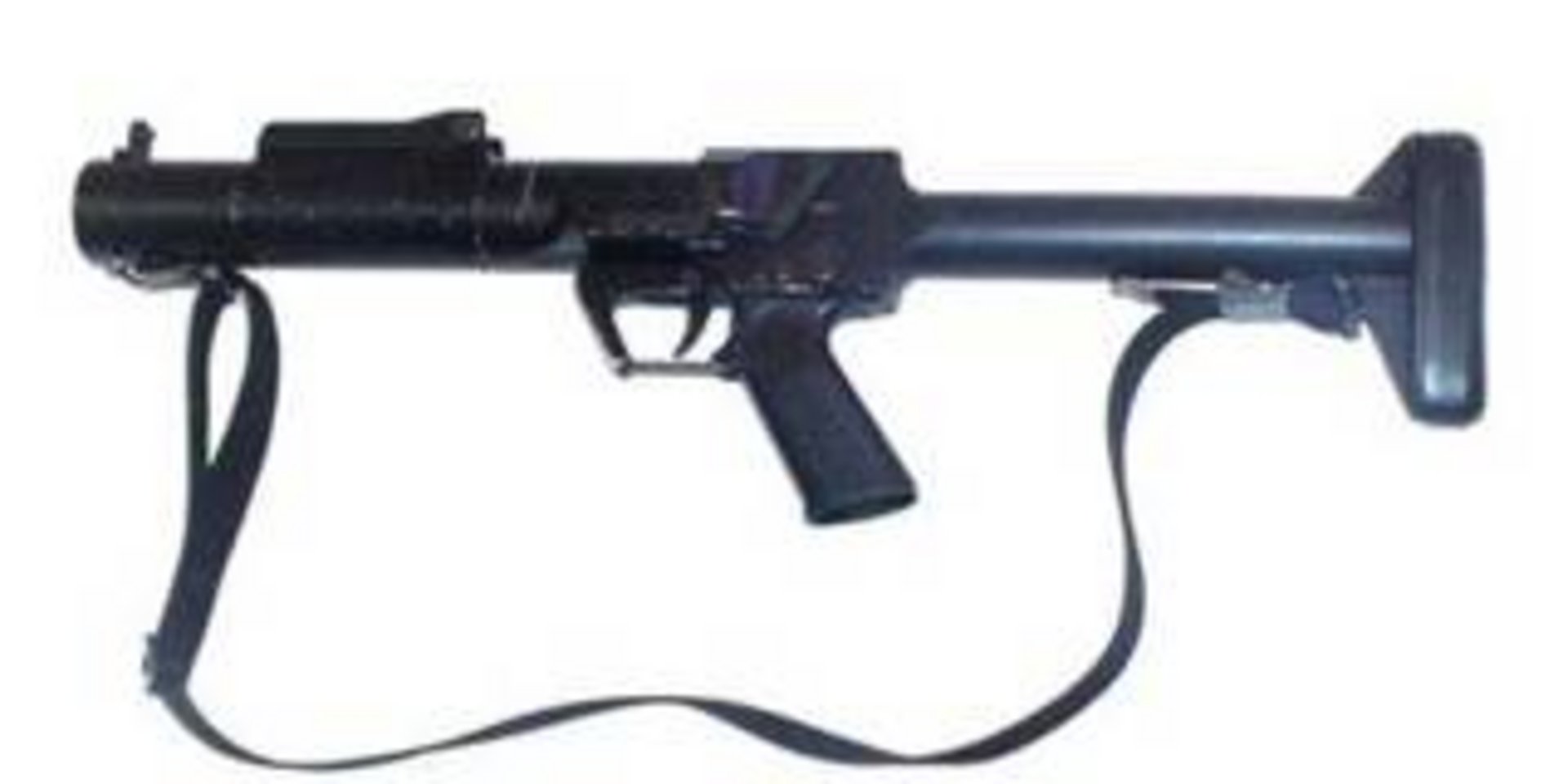

ST ENGINEERING CIS 40MM Grenade Launcher

The grenade launcher is intended for destroying enemy personnel, light armoured vehicles, and firing positions, as well as for battlefield illumination, smoke screening, and target marking.

This weapon is designed to be handled by a grenade launcher operator who, in addition to his personal weapon, is also equipped with a single-shot grenade launcher. When firing with a grenade launcher, the original sight is used. The weapon is used by the Slovenian Armed Forces reserve units.



The grenade launcher can fire single shots and is opened and closed by break action. The maximum range is 400 m, with the effective range being up to 350 m.



ST Engineering, Singapore



Basic information
Calibre:40x 46 mm
Ammunition:40 mm
Effective range:350 m
Rate of fire:/
Muzzle velocity:76 m/s
Magazine:n/a
Length:655 mm
Barrel length:305 mm
Weight:2070 g (unloaded)

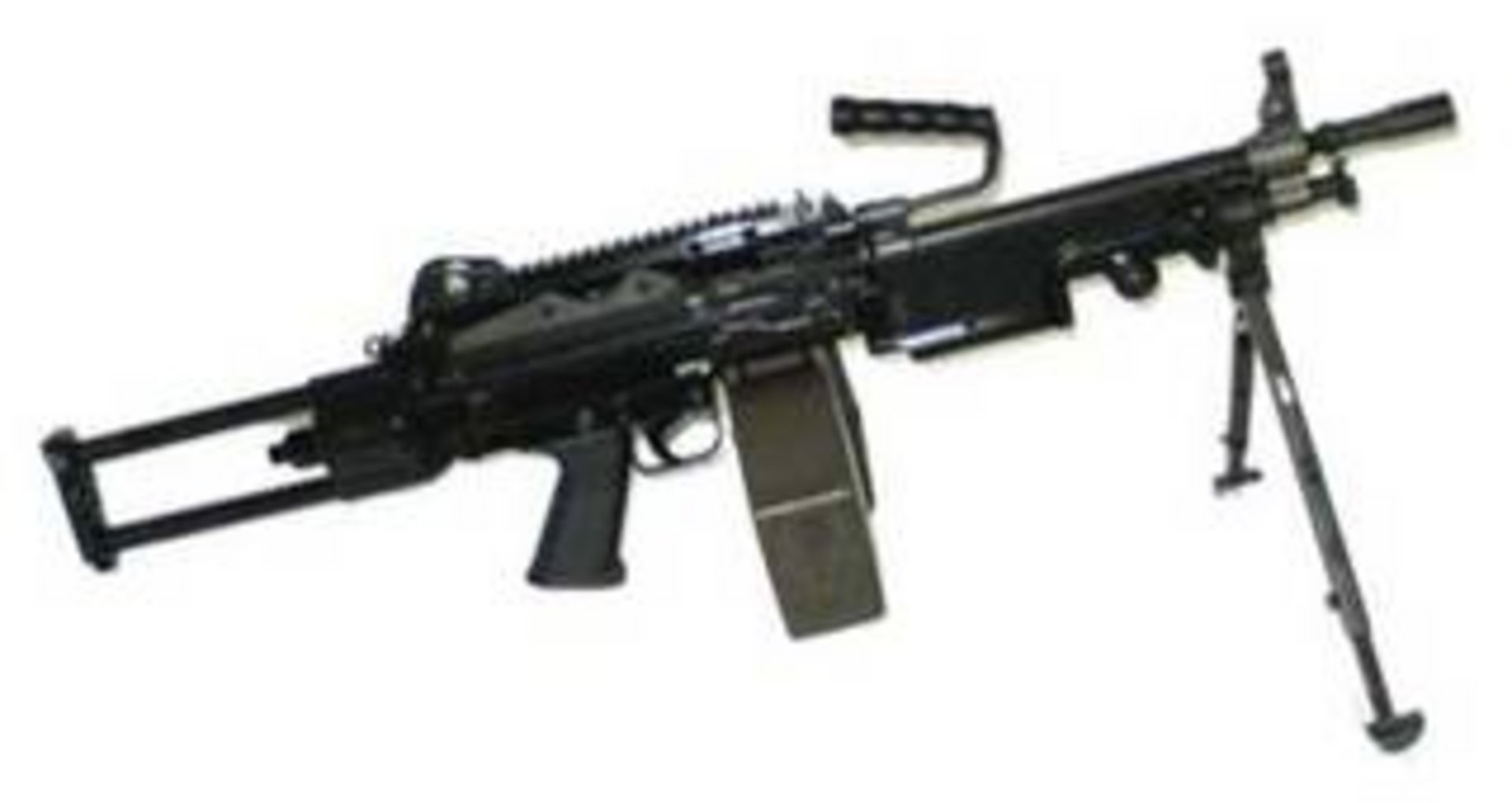

FP HERSTAL MINIMI Light Machine Gun

This machine gun is used as a weapon for direct support of own units, and can also be mounted on a vehicle, helicopter or a vessel by means of a tripod or a pedestal.



The MINIMI Light Machine Gun is an air-cooled fully-automatic weapon with gas-operated reloading. The SAF uses two versions: 5.56 mm and 7.62 mm calibre. All SAF weapons are equipped with an Elcan optical sight with the following magnifications: 1.5x, 3.4x, and 6x.



FN Herstal SA, Belgium



Basic information
Calibre:5.56 x 45 mm / 7.62 x 51 mm
Ammunition:5.56 mm / 7,62 mm
Effective range:600 m
Rate of fire:800 rounds/minute
Muzzle velocity:900 m/s
Magazine:30 rounds
Ammunition belt:100 or 200 rounds
Length:780 mm
Barrel length:349 mm
Weight:7260 g (unloaded)

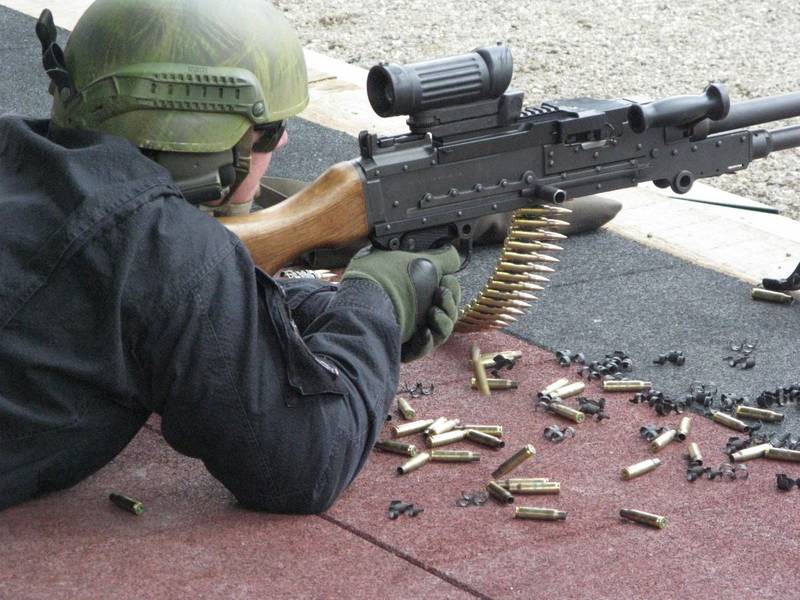

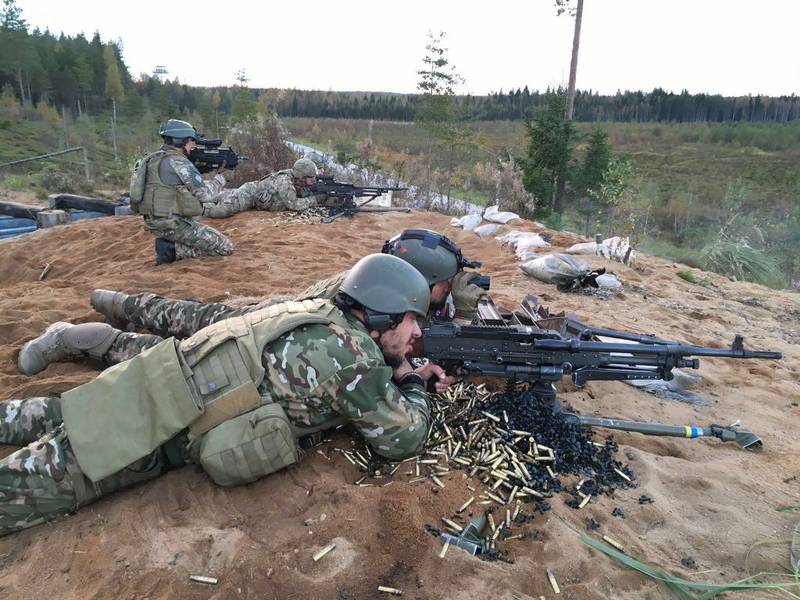

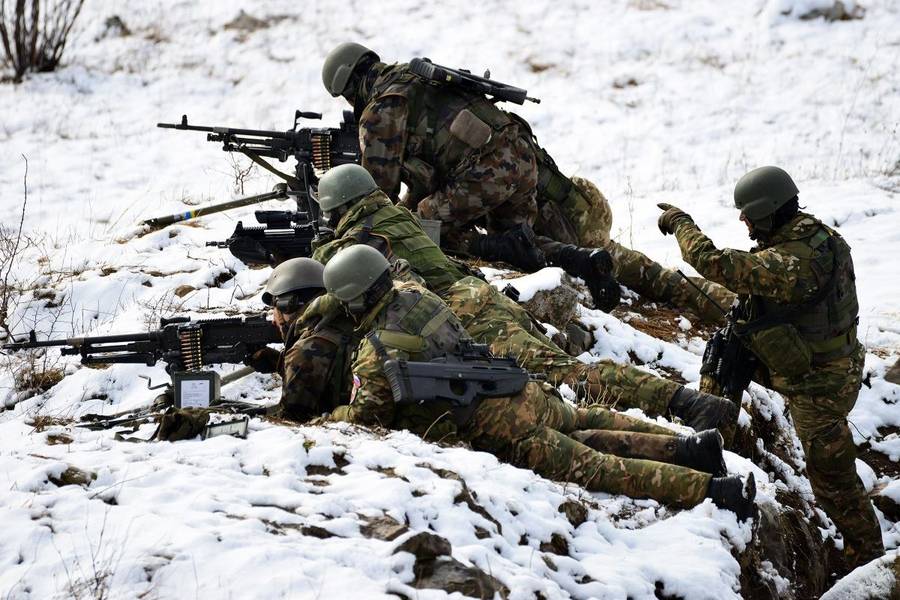

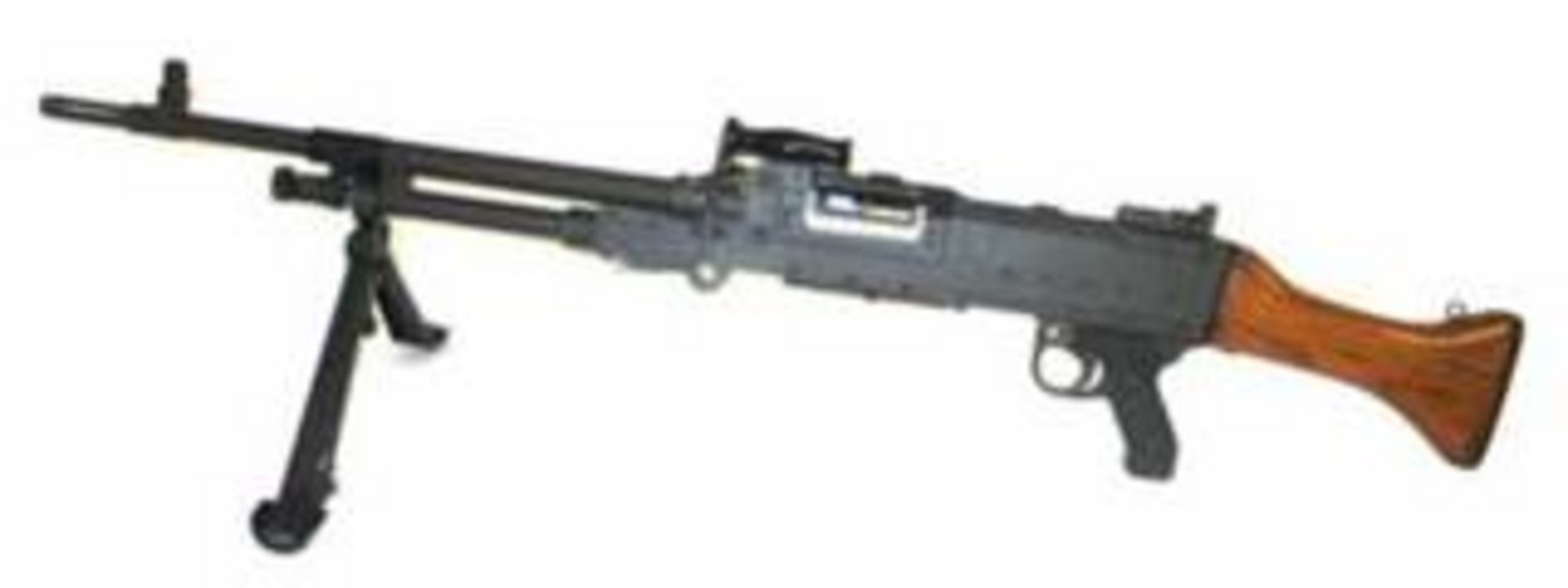

FN HERSTAL MAG Light Machine Gun

The FN MAG Light Machine Gun is a fully-automatic infantry units’ weapon designed to destroy the opponent's manpower and its unarmoured assets. It is also used as a machine gun (from a tripod), mounted on the turret of combat vehicles next to the main weapon or as a machine gun for the direct protection of vehicles.



The FM MAG machine gun is an air-cooled fully-automatic weapon with gas-operated reloading, loaded by an ammunition belt. It only fires in bursts. The Slovenian Armed Forces weapons are equipped with an optical sight by the Canadian producer Elcan with a 3.4x magnification.



FN Herstal SA, Belgium



Basic information
Calibre:7.62 x 51 mm
Ammunition:7.62 mm
Effective range:800 m
Rate of fire:1.000 rounds/minute
Muzzle velocity:830 m/s
Magazine:/
Length:1.263 mm
Barrel length:630 mm
Weight:11.90 g (unloaded)

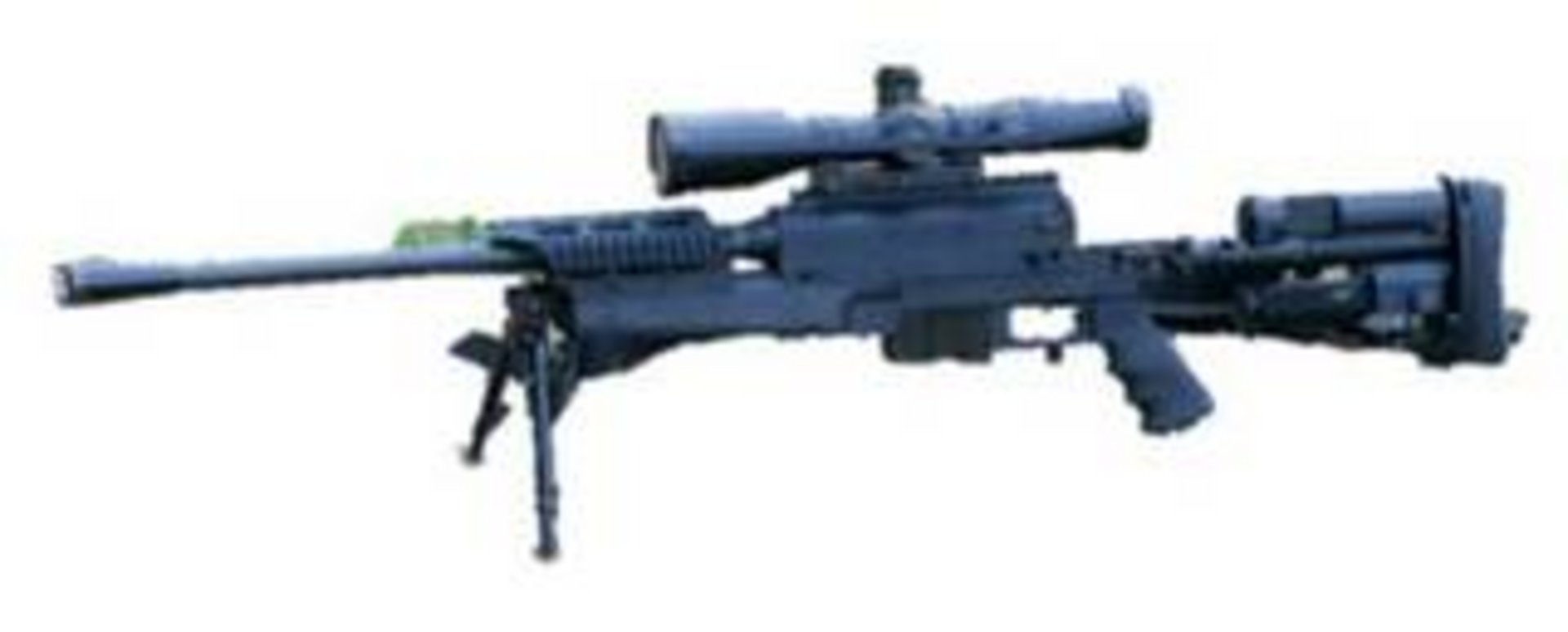

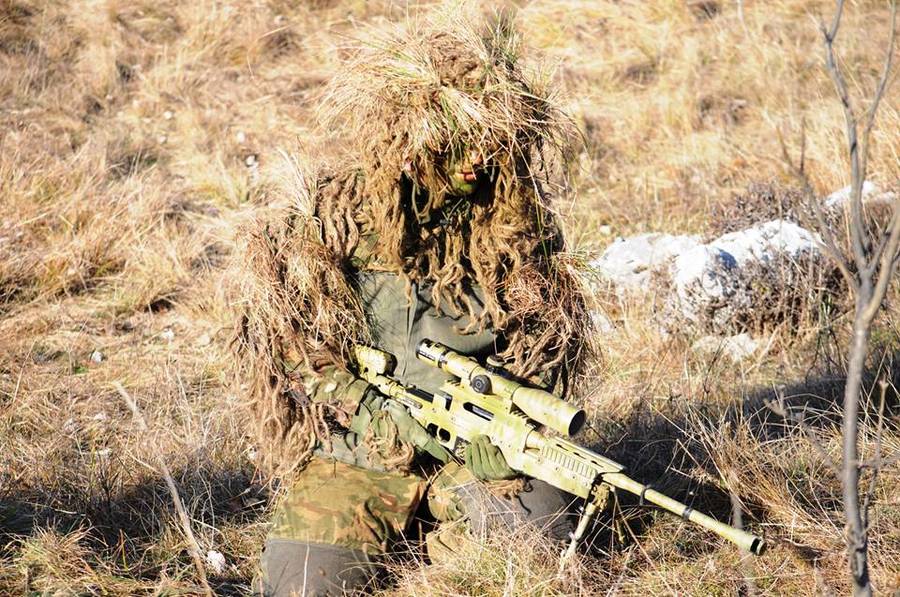

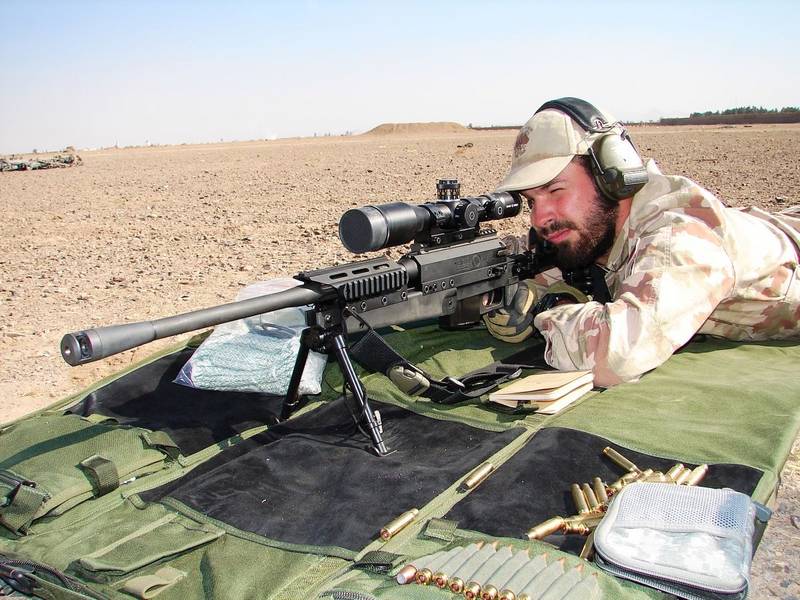

PGM PRECISION ULTIMA RATIO COMMANDO Sniper Rifle

The sniper rifle is a basic sniper weapon for platoon level.



Structurally, this is a repeating firearm (turn-bolt action design). The barrel is free-floating, inserted in an aluminum frame. It has a folding and adjustable buttstock. The Slovenian Armed Forces weapons are equipped with optical sights by Schmidt&Bender and night optics by Simrad.



PGM Precision, France



Basic information
Calibre:7.62 x 51 mm
Ammunition:7.62 mm, sniper ammunition
Effective range:800 m
Muzzle velocity:830 m/s
Magazine:10 rounds
Length:1118 mm
Barrel length:550 mm
Weight:6600 g (unloaded)

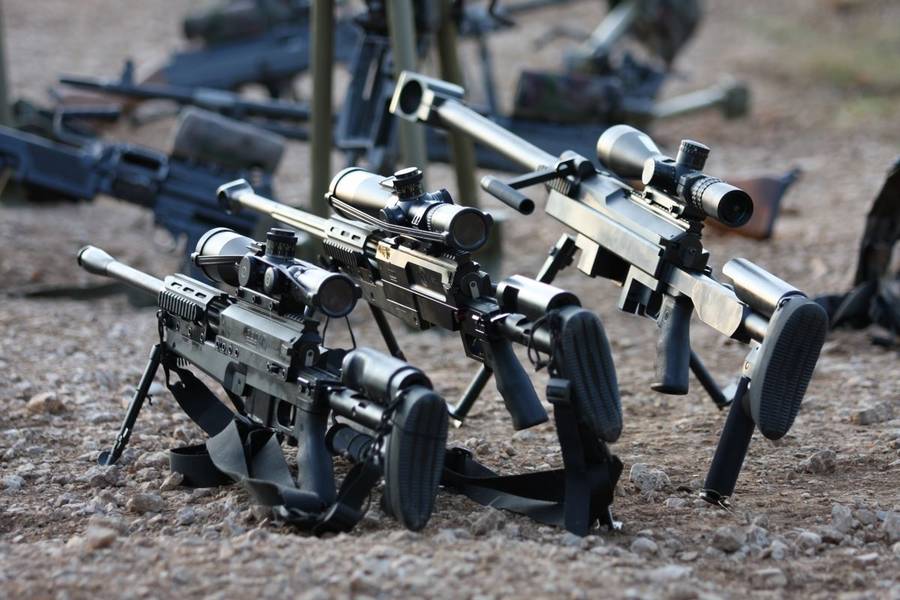

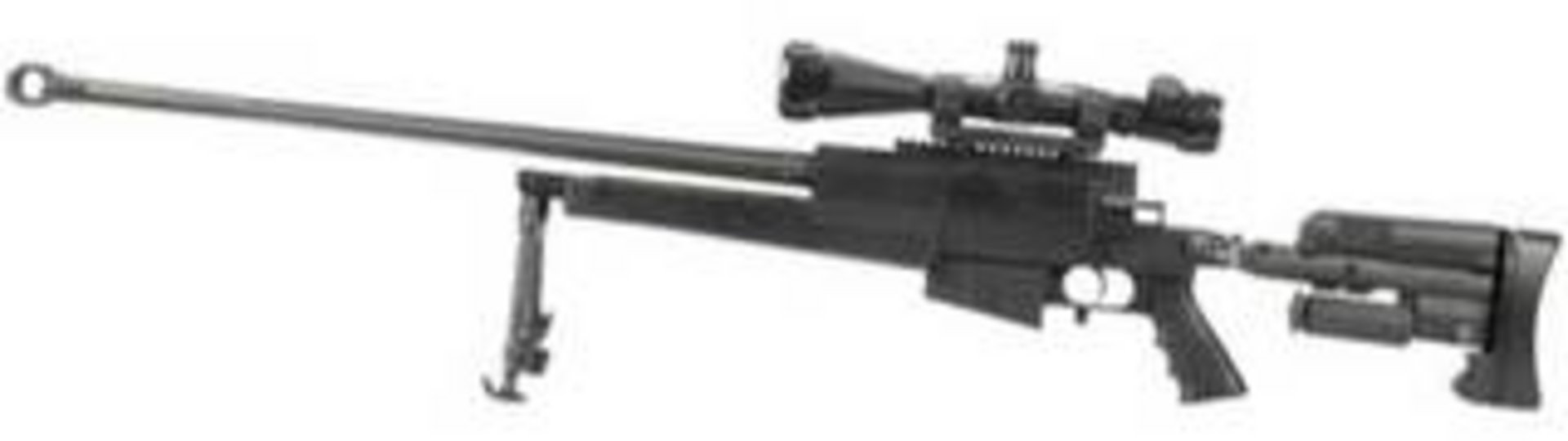

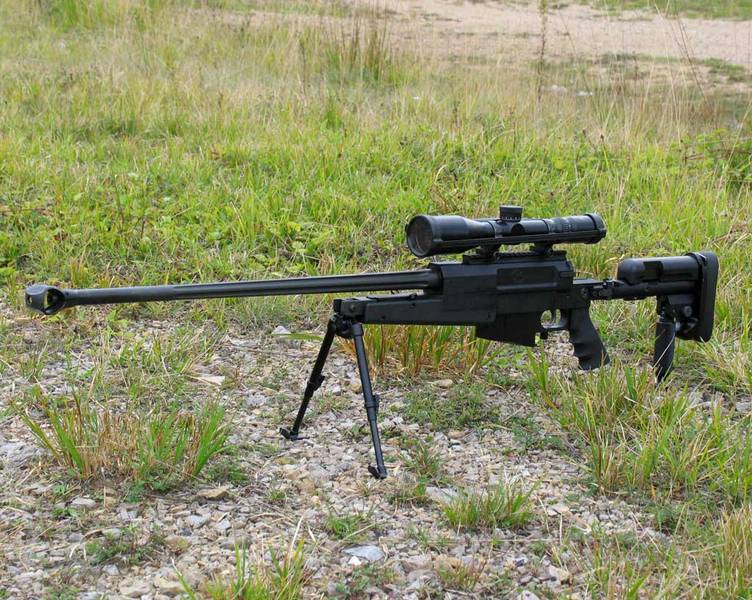

PGM PRECISION MINI HECATE Sniper Rifle

The sniper rifle is a company level weapon. With the new 8.6 mm calibre the rifle fills a gap between the 7.62 mm light calibre and the 12.7 mm heavy calibre.



Structurally, this is a repeating firearm (turn-bolt action design). It has a folding and adjustable buttstock. The Slovenian Armed Forces weapons are equipped with optical sights by Schmidt&Bender and night optics by Simrad.



PGM Precision, France



Basic information
Calibre:8.6 x 70 mm
Ammunition:8,6x70 mm (.338Lapua Magnum)
Effective range:1200 m
Muzzle velocity:900 m/s
Magazine:10 rounds
Length:1295 mm
Barrel length:721 mm
Weight:7300 g (unloaded)

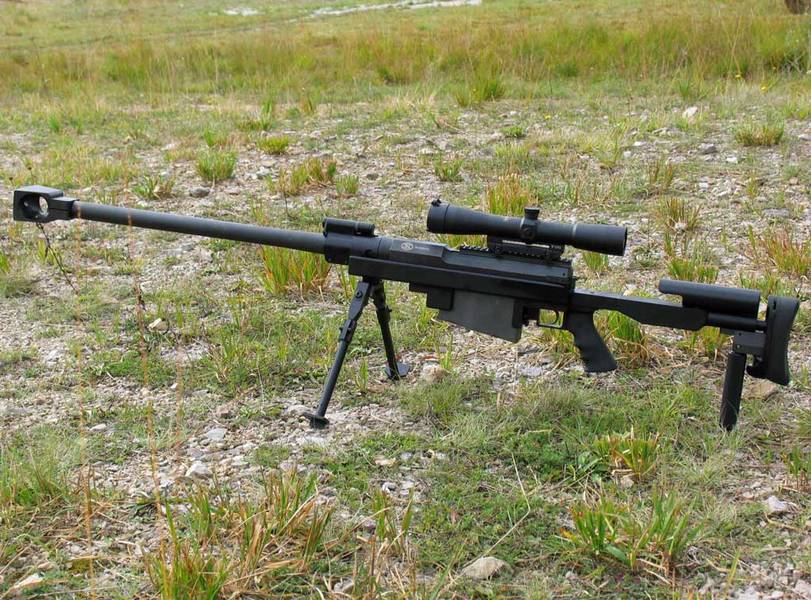

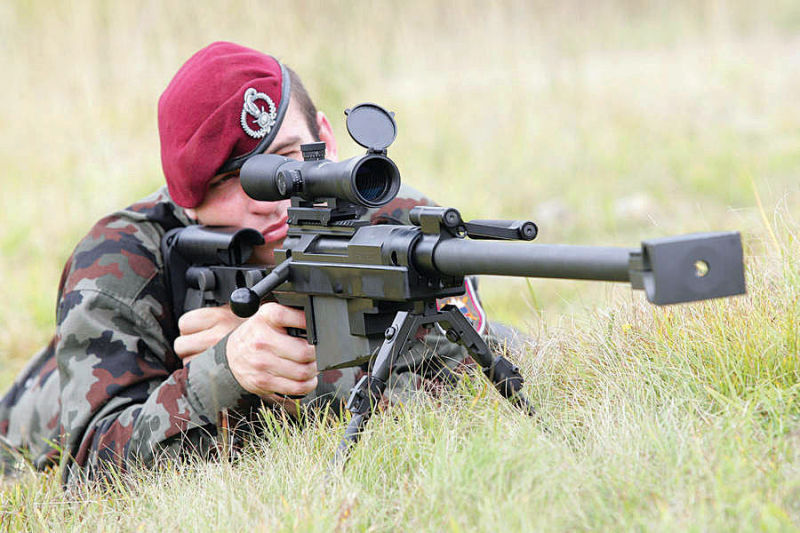

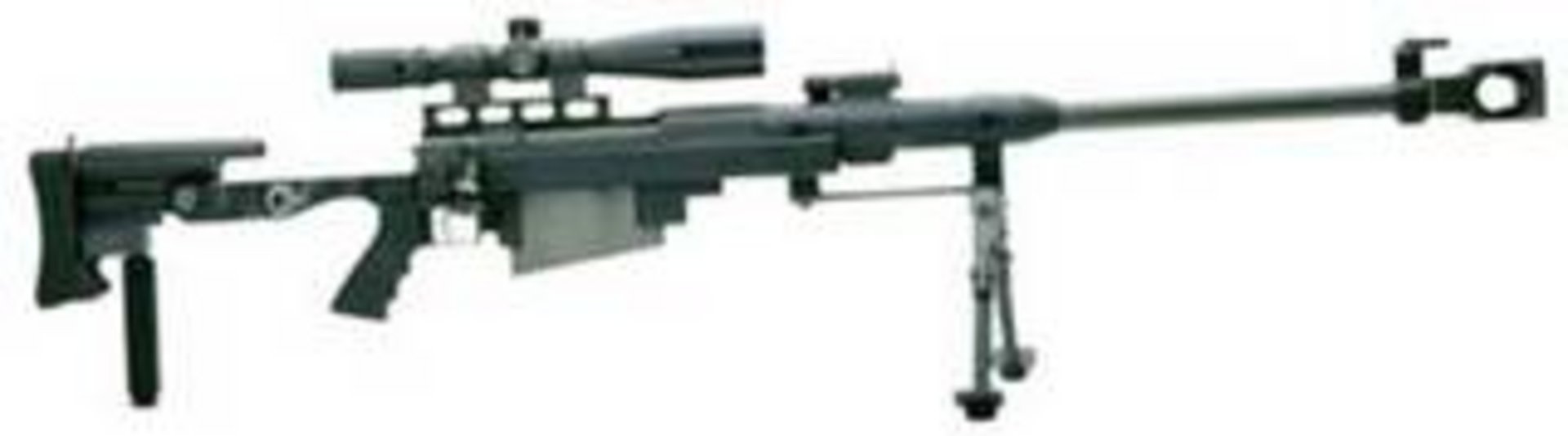

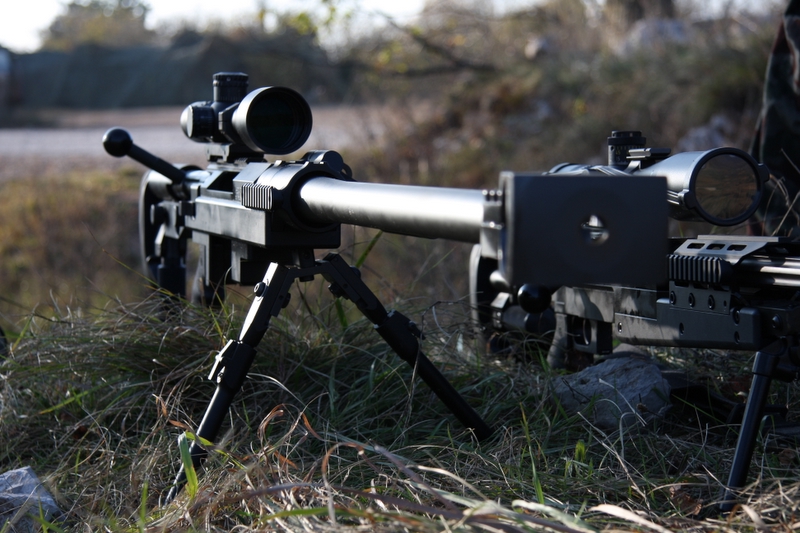

PGM PRECISION HECATE II Sniper Rifle

The sniper rifle is a company level weapon. With the new 8.6 mm calibre the rifle fills a void between the 7.62 mm light calibre and the 12.7 mm heavy calibre.



Structurally, this is a repeating firearm (turn-bolt action design). It has a folding and adjustable buttstock. The Slovenian Armed Forces weapons are equipped with optical sights by Schmidt&Bender and night optics by Simrad.



PGM Precision, France



Basic information
Calibre:12.7 x 99 mm
Ammunition:12.7 mm, sniper ammunition
Effective range:2200 m
Muzzle velocity:825 m/s
Magazine:7 rounds
Length:1439 mm
Barrel length:700 mm
Weight:15300 g (unloaded)

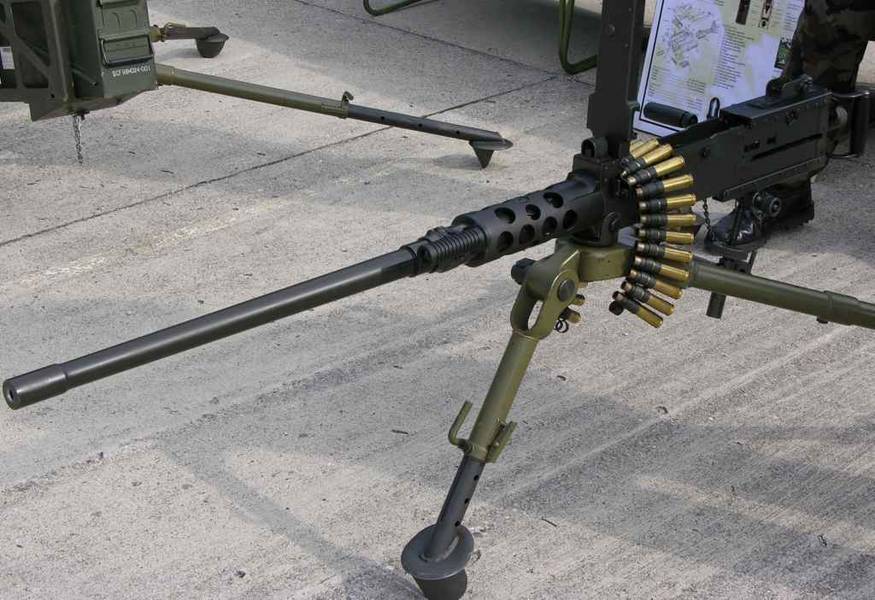

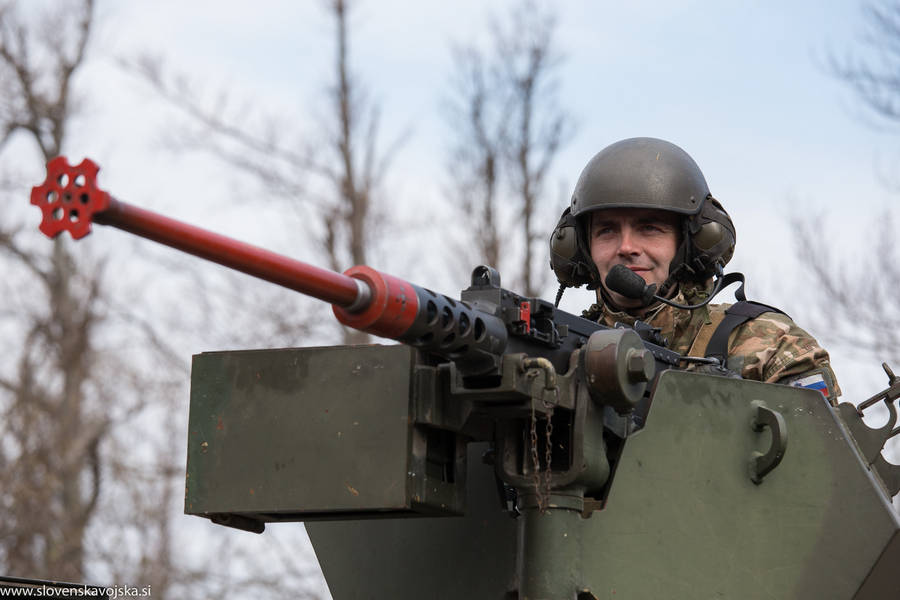

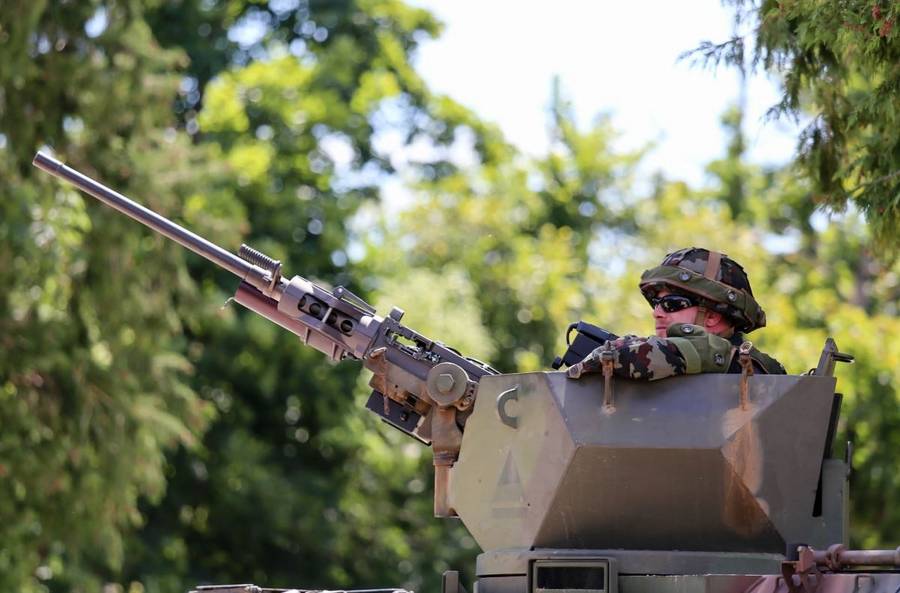

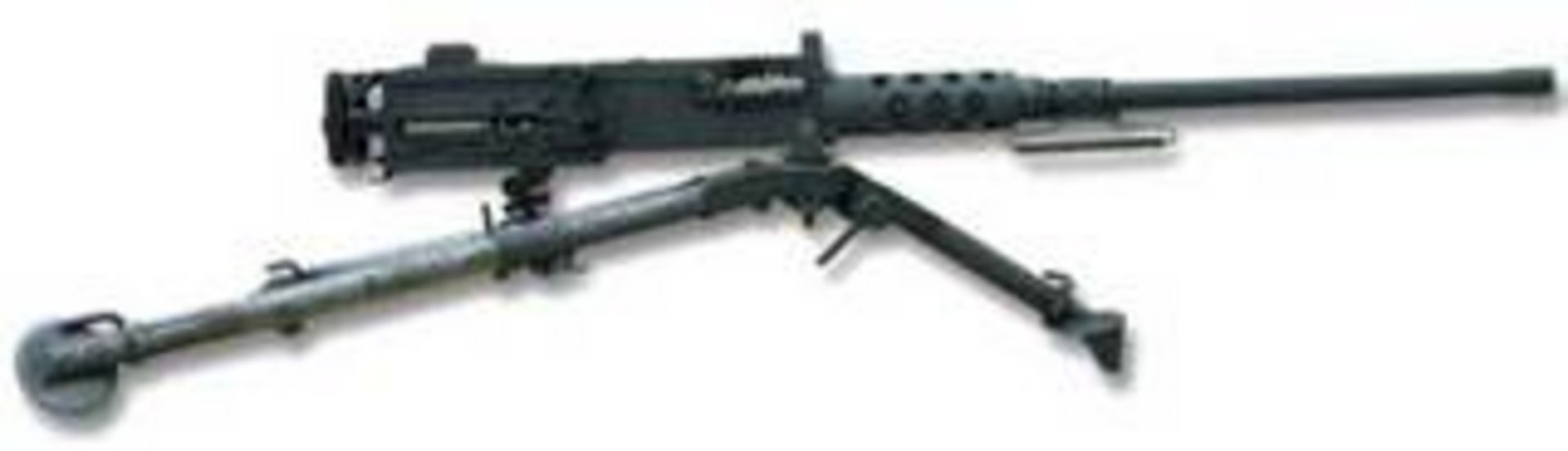

FN HERSTAL M2HB QCB Heavy Machine Gun

This multi-purpose heavy machine gun is designed for the neutralization of manpower and light armoured targets with direct fire on land, water and in the air. It is a basic multi-purpose support weapon, which is usually mounted on a tripod or other carriers (vehicles, vessels or aircraft).



The M2HB QCB Machine Gun is a fully-automated weapon operated on a short recoil action principle. It is loaded with ammunition that is attached to the magazine belt with metal joints. The weapon is handled by two crew members.



FN Herstal SA, Belgium



Basic information
Calibre:12.7 x 99 mm
Ammunition:12.7 mm, different types
Effective range:1850 m
Rate of fire:635 RPM
Muzzle velocity:890 m/s
Ammunition belt:100 rounds
Length:1655 mm
Barrel length:1143 mm
Weight:38 kg (unloaded)

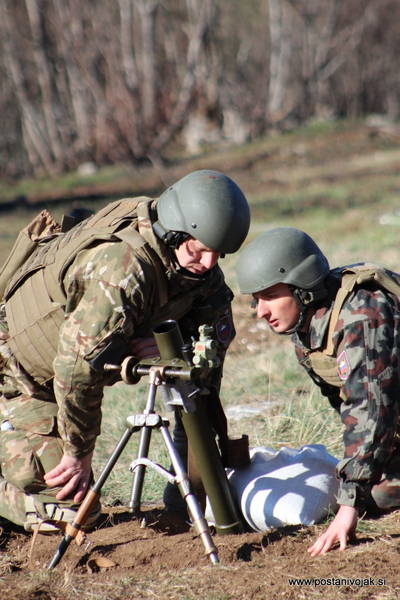

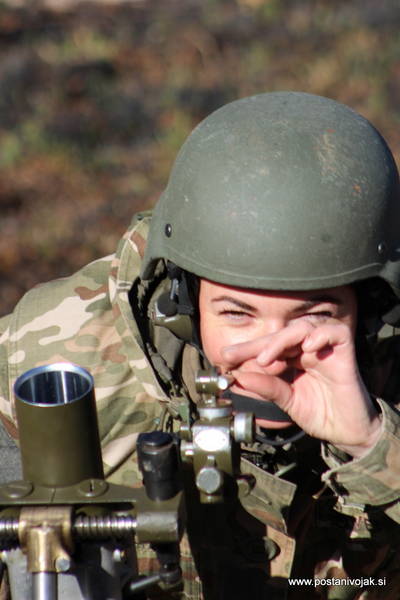

BNT "BRATSTVO" M-57 Mortar

The 60 mm M-57 mortar is an infantry support weapon. It is intended for neutralizing enemy personnel and firing positions, as well as for illuminating and obscuring the battlefield at ranges up to 1,200 meters.



It is used by the Slovenian Armed Forces reserve component.



BNT “Bratstvo”, Bosnia and Herzegovina (Yugoslavia)



Basic information
Calibre:60 mm
Ammunition:HE bomb
Effective range:1,690 m
Rate of fire:30 bombs/minute
Barrel length:651 mm
Fire angle:45° – 85°
Firing radius:360°
Weight:19.70 kg
Crew:2

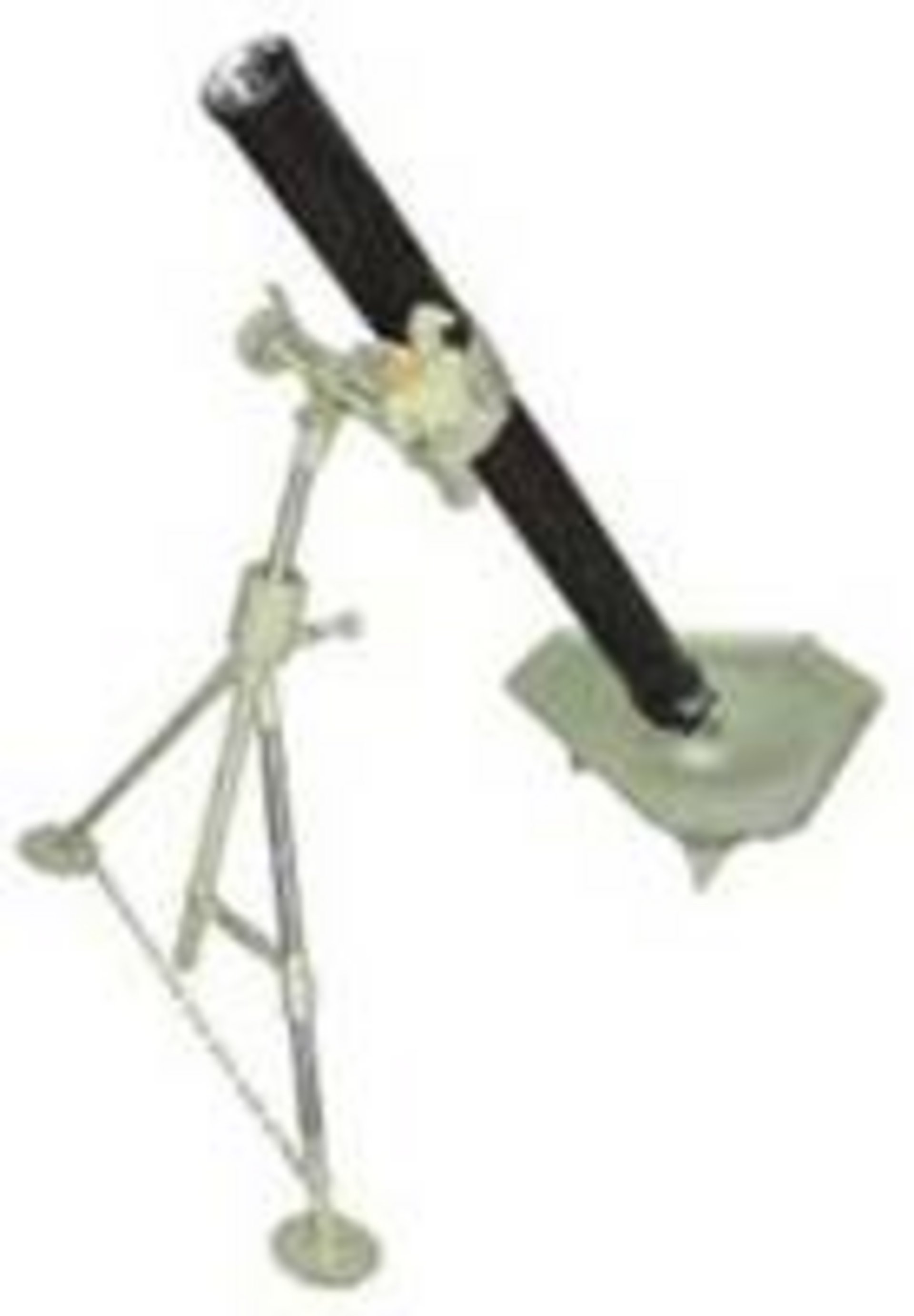

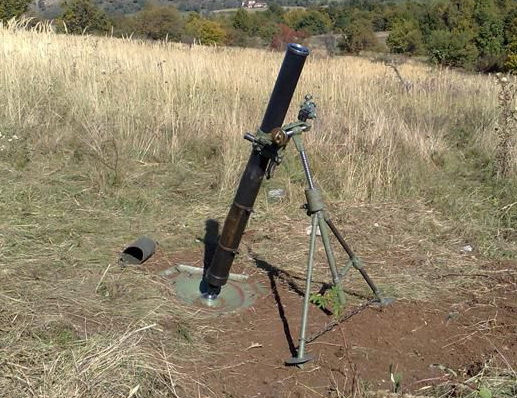

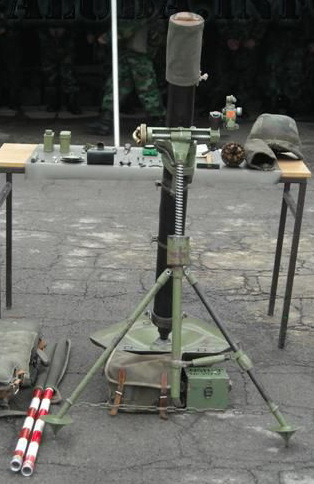

BNT "BRATSTVO" M-69 Mortar

The 82 mm M-69 mortar is an infantry support weapon. It is intended for neutralizing enemy personnel and firing positions, as well as for illuminating and obscuring the battlefield. It is part of the Slovenian Armed Forces’ reserve component.

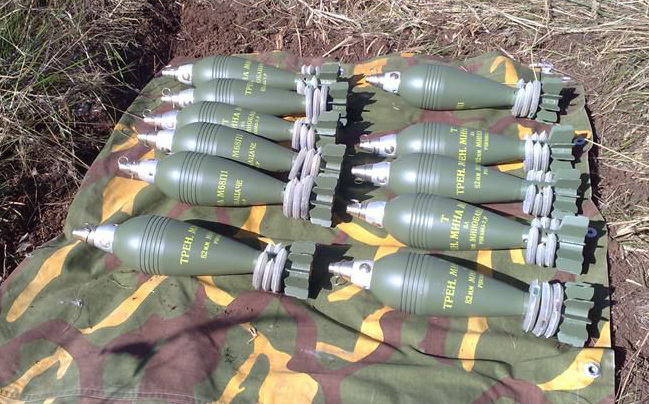

The mortar can use HE, smoke and illuminating bombs. Depending on the type of bomb, its maximum range is 4500 m.



BNT “Bratstvo”, Bosnia and Herzegovina (Yugoslavia)



Basic information
Calibre:82 mm
Ammunition:HE bomb
Effective range:4200 m
Rate of fire:25 bombs/minute
Barrel length:1200 mm
Fire angle:45° – 85°
Firing radius:360°
Weight:45 kg
Crew:4

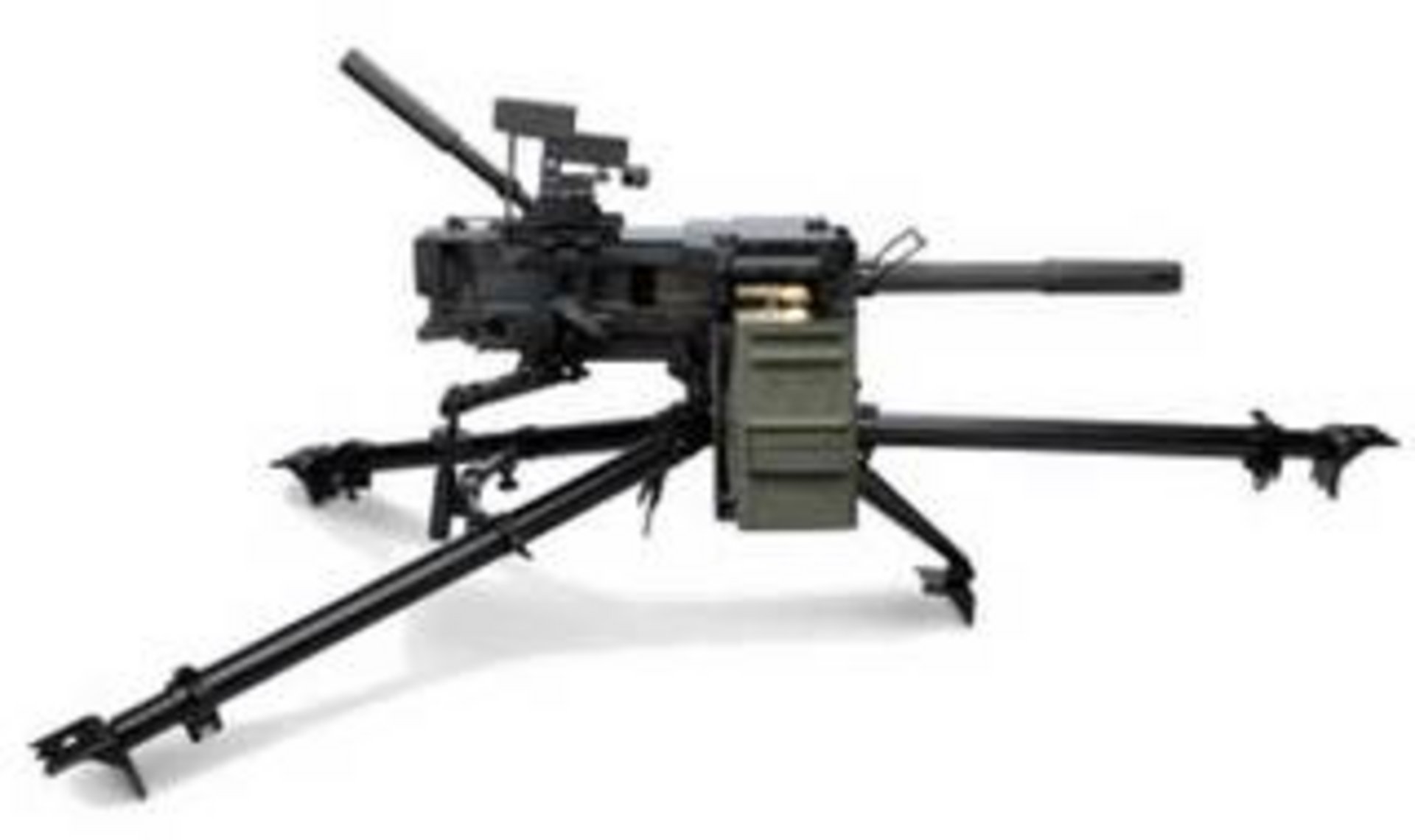

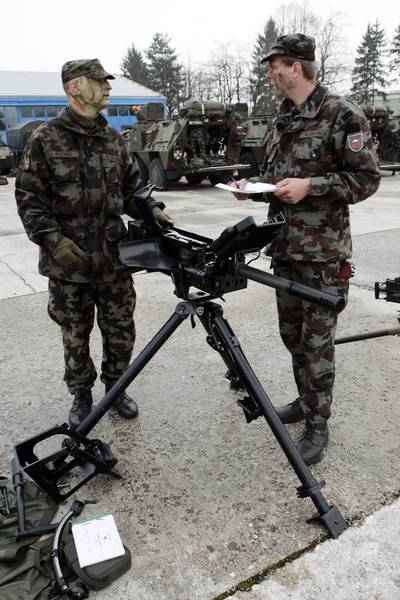

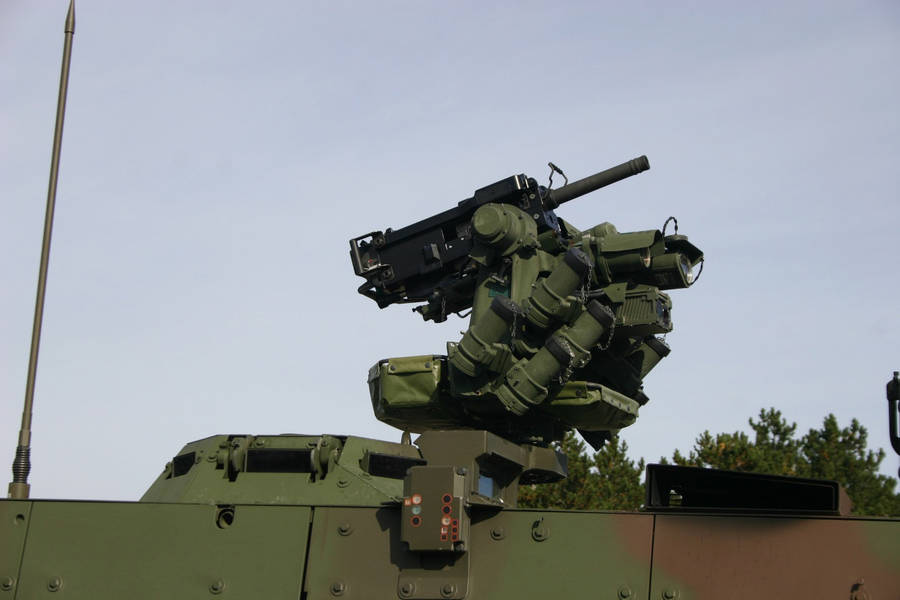

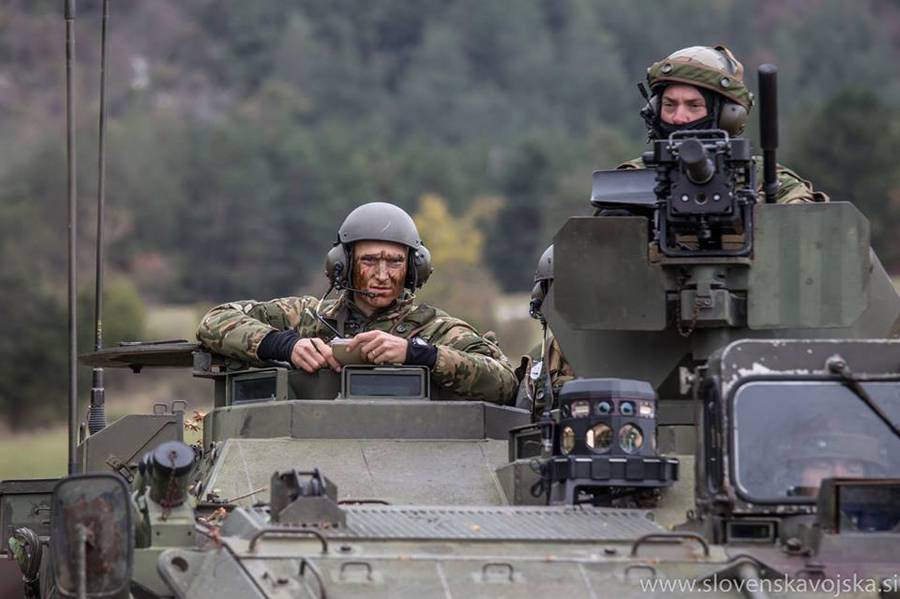

HECKLER & KOCH GMG Automatic Grenade Launcher

The Automatic Grenade Launcher is a multipurpose support weapon, usually mounted on a tripod or any other carrier (vehicle, vessel). It is designed to destroy light armoured and unarmoured land targets by means of direct and indirect fire within a range of 2000m.



The Automatic Grenade Launcher is an automatic weapon with blowback operation. It fires from open bolt firearm position. It is loaded from the left or the right side with a disintegrating ammunition belt of 32 rounds. The weapon is handled by two crew members. It can fire single shots or bursts.



Heckler & Koch GMBH, Germany



Basic information
 Calibre:40 x 53 mm
Ammunition:40 mm, different types
Effective range:1500 m
Rate of fire:350 rounds/minute
Muzzle velocity:
Magazine:/
Ammunition belt:32 grenades
Length:1180 mm
Barrel length:476 mm
Weight:60.6 kg (unloaded)
