Armoured Units

Armoured units are the main providers of fire power and maneuver. They are equipped and trained to provide support to infantry and carry out counter-airborne operations and anti-armour warfare.



The armoured capabilities of the Slovenian Armed Forces are able to participate in joint branch combat operations at the national level, and provide capacities to train infantry units in working with tanks and in anti-armour warfare.

ĐURO ĐAKOVIČ M-84 Main Battle Tank

The M-84 Main Battle Tank is a tracked heavily armoured vehicle with powerful weapons and high manoeuvre capabilities designed to destroy the opponents’ armoured combat vehicles, manpower and other combat assets.



The M-84 tank is armed with a 125 mm gun, a 12.7 mm machine gun and a 7.62 mm coaxial machine gun. In addition to weapons, it is also equipped with a fire control system, fire protection system, CBRN protection, and a system for the detection of laser radiation.



Đuro Đakovič, Croatia (Yugoslavia)



Basic information
Crew:3
Length:9530 mm
Width:3590 mm
Height:2190 mm
Engine:780 HP
Combat weight:41500 kg
Speed:60 km/h
Maximum approach angle:66 %
Operational range:700 km

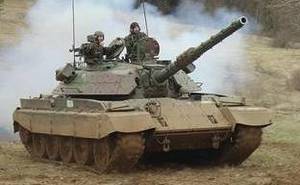

ST RAVNE M-55 S Main Battle Tank

The M-55S tank is a tracked vehicle with explosive reactive armour and powerful weapons designed for the destruction of the opponents’ manpower, armoured and other combat vehicles. The M-55 S is an upgrade of the T-55.



The tank is armed with a 105 mm gun, a 12.7 mm machine gun and a 7.62 mm coaxial machine gun. In addition to weapons, it is also equipped with a fire control system, fire protection system, CBRN protection, and a system for the detection of laser radiation. It is intended for the Slovenian Armed Forces reserve units.



ST Ravne, Slovenia (T-55: Malyshev, Russia and Bumar-Łabędy, Poland)



Basic information
Crew:4
Length:9900 mm
Width:3500 mm
Height:2390 mm
Engine:580 KM
Combat weight:38000 kg
Speed:50 km/h
Maximum approach angle:60 %
Operational range:420 km

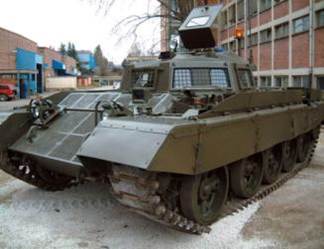

ST RAVNE M-55 USP Main Battle Tank

The M-55 USP Main Battle Tank is intended for the training of tank drivers.



Instead of a turret it has a special construction that enables the instructor to monitor the work of the driver and to observe the direction of travel. In terms of dimensions, the tank does not differ from the M-55 S tank. Nonetheless, it enables the instructor to monitor the work of the driver.



ST Ravne, Slovenia (T-55: Malyshev, Russia and Bumar-Łabędy, Poland)



Basic information
Crew:1 + 1
Length:6600 mm
Width:3500 mm
Height:2390 mm
Engine:580 KM
Combat weight:35000 kg
Speed:50 km/h
Maximum approach angle:60 %
Operational range:420 km

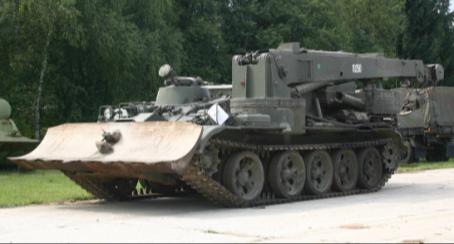

ZTS MARTIN JVBT 55A Recovery Tank

This armoured tracked recovery combat vehicle (recovery tank) is designed for the recovery of destroyed, damaged or faulty combat technical equipment, for assisting in repairs, for shorter towing distances, and for setting up shelters.



The vehicle base is the T-55A tank chassis. It is equipped with winches, a plough, a lift and other tools required for recovery and basic field repairs. The tank is equipped with a machine gun primarily used for self-defence.



ZTS Martin, Slovakia



Basic information
Crew:3
Length:9740 mm
Width:3392 mm
Height:2650 mm
Engine:580 KM
Combat weight:42000 kg
Speed:40 km/h
Maximum approach angle:62 %
Operational range:480 km

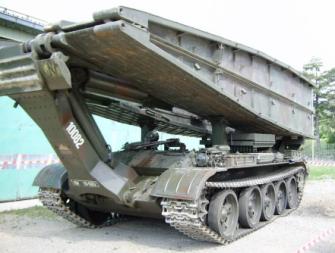

ZTS MARTIN MT-55 – Armoured Vehicle-Launched Bridge (AVLB) Tank

An AVLB tank is a tracked armoured vehicle designed to quickly overcome water obstacles or trenches in combat conditions. The vehicle base is the T-55A tank chassis, on top of which the systems, compounds and equipment required for launching a bridge, as well as the folding bridge itself, are mounted.



Vehicle base is the T-55A tank chassis. It is equipped with hydraulics for bridge assembly and disassembly. The tank is equipped with a machine gun primarily used for self-defence.



ZTS Martin, Slovakia



Basic information
Crew:3
Length:9880 mm
Width:3300 mm
Height:3500 mm
Engine:580 KM
Combat weight:36500 kg
Speed:50 km/h
Maximum approach angle:62 %
Operational range:480 km

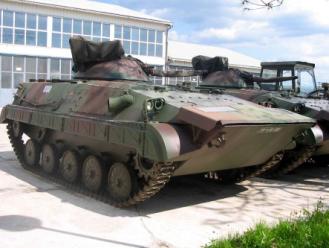

YUGOIMPORT M-80A Infantry Fighting Vehicle

The BVP M-80A is a combat tracked fully amphibious vehicle, which is the basic vehicle of a mechanized squad. It is designed to destroy the opponent’s manpower and armoured and other combat assets on land, as well as air targets within the effective range of the turret weapons and personal weapons of the mechanized squad.



It is equipped with a 20 mm gun and a 7.62 mm coaxial machine gun. It has CBRN and fire protection.



Yugoimport, Serbia (Yugoslavia)



Basic information
Crew:3 + 7
Length:6420 mm
Width:2995 mm
Height:2200 mm
Engine:325 KM
Combat weight:13850 kg
Speed:65 km/h
Maximum approach angle:60 %
Operational range:500 km

PATRIA AMV XC 400 “SVARUN” Medium Wheeled Armoured Vehicle

The Medium Wheeled Armoured Vehicle 8x8 Svarun is a modular armoured vehicle, which was produced in three variants for the Slovenian Armed Forces: an armoured personnel carrier, a command vehicle and an infantry fighting vehicle.



The vehicles have a good armour and anti-mine protection, high mobility, the RBC protection system and two different weapon stations with modern electro-optical sensors. All vehicles have a modern inbuilt C4I system.



Patria, Finland



Basic information
Crew:3 + 9
Length:8050 mm
Width:2830 mm
Height:3232 mm
Engine:405 kW
Combat weight:26000 kg
Speed:100 km/h
Maximum approach angle:70 %
Operational range:700 km

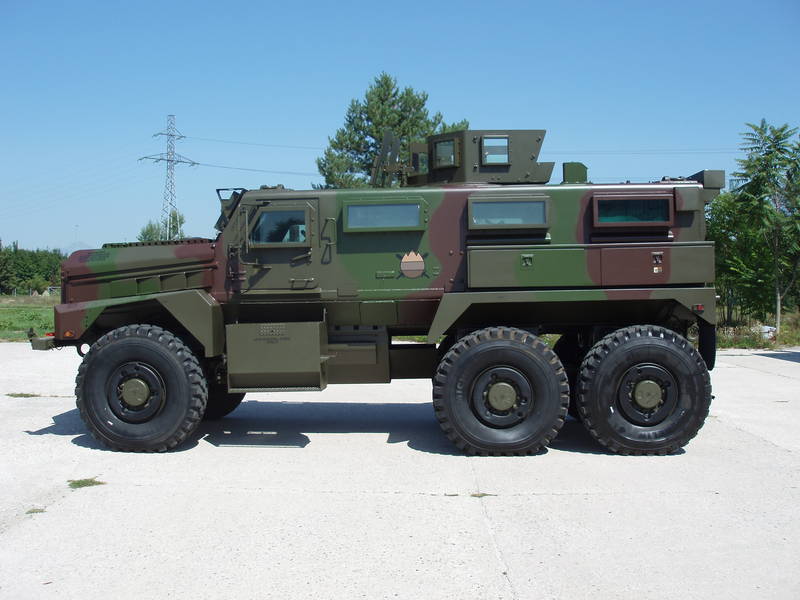

GDLS JERRY 6x6 Engineer Variant Wheeled Armoured Vehicle for EOD

The Wheeled Armoured Vehicle is designed for the EOD unit. It is equipped with specialized equipment and signals for unit operation.



The vehicles have a good armour and anti-mine protection and a large cargo area which enables the transportation of an EOD team, including their entire equipment. It is equipped with a 7.62 mm machine gun.



General Dynamics Land Systems, USA



Basic information
Crew:1 + 3
Length:7490 mm
Width:2720 mm
Height:2413 mm
Engine:246 kW
Combat weight:29257 kg
Speed:104 km/h
Maximum approach angle:
Operational range:563 km
